Kakuta F Clamps vs. Bessey: An Engineer’s Comparison

By the Kakuta Engineering Team · Reading time: ~6 minutes

Comparison of Kakuta's Strong Clamp Series (SM) and Wood Handle Series (WH) F-Clamps, showcasing technical specifications, product dimensions, and industrial workholding solutions for engineering, fabrication, and manufacturing applications.

If your shop runs Bessey F-clamps, you already know what a good general-purpose clamp does: hold a workpiece square while you weld, fabricate, glue, or assemble. Bessey has earned its reputation. But brand recognition isn't a technical spec — and for buyers standardizing a fixture line or managing a tooling budget, a like-for-like alternative is worth understanding.

This comparison looks at how Kakuta's six F-clamp series map against Bessey's range, where the two brands align on construction, and how to choose the right series for woodworking, metal fabrication, welding, and assembly. It's written for engineers and buyers who want specifics, not a sales pitch.

If you're earlier in the selection process, our guide on how to choose the right clamp for your application and our breakdown of clamping force and safety factor cover the fundamentals this article builds on.

What Is an F-Clamp — and Where It Fits

An F-clamp (named for its F-shaped profile) is a sliding-arm bar clamp: one fixed jaw, one jaw that slides along a bar and locks under load. It's the versatile, repositionable holding tool you reach for on benches, weld tables, and general fabrication work.

Both Kakuta and Bessey build F-clamps across a spectrum of duty levels — from light woodworking to heavy steel-structure work. The practical differences come down to series breadth, construction, cost position, and availability.

Six Series at a Glance

Kakuta organizes its F-clamps into six dedicated series, each addressing a different handle style or application, with clamping capacity from roughly 300 kg to 2,200 kg and jaw openings up to 1,500 mm:

Series	Type	Sizes	Best For
TH	T-Handle	10 sizes · 16–150	General fabrication, high grip torque
LV	Quick Lever	6 sizes · 20–100	Fast, repeated clamping cycles
WH	Wooden Handle	4 sizes · 16–60	Woodworking, comfortable grip
FG	Gravity Strong	7 sizes · 25–100	Higher-force general holding
SM	Strong Clamp	6 sizes · 20–60	Assembly, medium-duty
FS	Steel Structure	7 sizes · 30–150	Welding, heavy steel fab (to 2,200 kg)

Kakuta TH25 heavy-duty F-Clamp shown in front and perspective views, featuring a forged steel rail, precision screw spindle with T-handle, and sliding arm for secure workholding in machining, welding, and fabrication applications.

Kakuta-to-Bessey Model Map

For teams cross-referencing an existing Bessey part number, here's the full model map across all six series. Featured crossovers (★) are the most common direct equivalents:

Kakuta	Bessey	Kakuta	Bessey
T-Handle (TH)
TH 16	G16ZK	TH 50	G50ZK
TH 20	G20ZK	TH 60	G60ZK
TH 25	G25ZK	TH 100	G100ZK
TH 30	G30ZK
TH 40 ★	G40ZK
Quick Lever (LV)
LV 20	G20H	LV 50	G50H
LV 25 ★	G25H	LV 60	G60H
LV 30	G30H	LV 100	G100H
Wooden Handle (WH)
WH 16	G16Z	WH 50	G50Z
WH 40	G40Z	WH 60	G60Z
Gravity Strong (FG)
FG 25	GS25M	FG 60	GS60M
FG 30	GS30M	FG 100	GS100M
FG 40	GS40M
Strong Clamp (SM)
SM 20	SGL20M	SM 40	SGL40M
SM 25	SGL25M	SM 50	SGL50M
SM 30	SGL30M	SM 60	SGL60M
Steel Structure (FS)
FS 30	STB30M	FS 80	STB80M
FS 40	STB40M	FS 100	STB100M
FS 50 ★	STB50M	FS 150	STB150M
FS 60	STB60M

40 Bessey crossovers documented across six series. Model numbers are provided for cross-reference only; Bessey is a trademark of its respective owner, and Kakuta is not affiliated with or endorsed by Bessey. Confirm dimensions and capacity against current spec sheets before specifying.

Construction: What's Under the Finish

Clamp performance and service life come down to materials and treatment. Kakuta's F-clamp range is built to a consistent construction standard across all six series:

• Medium-carbon steel — a balance of strength and toughness suited to repeated loading.
• Heat-treated — for hardness and resistance to deformation under clamping load.
• Nickel-chrome (Ni-Cr) plated — corrosion resistance and a durable finish for shop environments.

Bessey clamps are likewise well-built to their own specifications. For most fabrication and welding tasks, both brands deliver the holding performance the job needs — which is exactly why a clear, verified model map matters when you're standardizing a line.

Choosing the Right F-Clamp Series

Use application as your starting point, then match capacity:

• Woodworking — the WH (Wooden Handle) series offers a comfortable grip and controlled force for panels and joinery.
• Metal fabrication — the TH (T-Handle) series delivers high grip torque for square, secure holds on steel.
• High-cycle assembly — the LV (Quick Lever) series speeds up repeated clamp-and-release work, from around 350 kg bench work upward.
• Welding & heavy steel structures — the FS (Steel Structure) series carries the range up to 2,200 kg for the most demanding holds.
• General medium-duty — the FG and SM series fill the middle ground with strong, versatile holding.

Kakuta WH20 F-Clamp featuring a forged steel rail, precision sliding arm, and ergonomic wooden handle for secure, repeatable workholding in welding, fabrication, and fixture applications.

Once you've picked a series, apply a sensible safety factor to your working load rather than specifying at the clamp's rated maximum — the same principle we cover in our clamping force and safety factor guide.

Kakuta SM25 heavy-duty F-Clamp shown in front and perspective views, featuring a forged steel rail, precision screw spindle, and sliding arm for dependable clamping in machining, welding, and fabrication applications.

The Bottom Line

Bessey makes excellent F-clamps — and so does Kakuta. For engineers and buyers, the useful question isn't "which brand wins" but "which specific clamp fits this job, and what are my options." With six series covering woodworking through 2,200 kg steel-structure work, all built to a consistent medium-carbon-steel, heat-treated, Ni-Cr-plated standard, and 40 documented crossovers, Kakuta gives you a full-range alternative that maps cleanly onto the Bessey models you may already be running.

Explore the full Kakuta F-clamp range, or contact our engineering team for a model-by-model crossover on your current clamps. For more background on clamp fundamentals, the Engineering Toolbox reference is a useful primer.

What Is Clamping Force and Why Your Rated Capacity Isn’t the Full Story

A toggle clamp's rated capacity is only the starting point for safe fixture design.

By the Kakuta Engineering Team · Reading time: ~6 minutes

Every toggle clamp spec sheet leads with one number: the rated holding capacity. It's printed in bold, measured in daN, and it's the figure most engineers use to compare one clamp against another. But if you specify a clamp on rated capacity alone, you're working with only part of the picture.

Rated capacity tells you what a clamp can hold under ideal, controlled test conditions. It does not tell you how much of that force you can rely on in a real fixture, under real loads, cycle after cycle. The gap between those two numbers is where fixture problems begin — parts that shift under machining loads, clamps that loosen over a production run, and holding force that quietly disappears when the geometry isn't ideal.

This guide explains what clamping force actually means, how rated capacity differs from the force you can count on in service, and how to apply a safety factor so your fixture holds reliably. If you're still deciding which clamp type to specify in the first place, start with our guide on how to choose the right toggle clamp for your application.

What Clamping Force Actually Means

Clamping force — also called holding force or hold-down force — is the force a toggle clamp applies to keep a workpiece secured against a fixture or work surface. In toggle clamp specifications it's most commonly expressed in daN (decanewtons), where 1 daN is approximately 1 kilogram-force, or about 2.25 pounds-force.

It helps to separate two related ideas that are easy to confuse:

• Holding capacity — the maximum force the clamp can resist at the clamping point before the toggle mechanism gives way. This is the rated number on the spec sheet.
• Applied clamping force — the actual force pressing your workpiece down in service, which depends on how the clamp is set, the spindle or bar position, and the fixture geometry.

The distinction matters because a toggle clamp is a mechanism, not a constant-force device. Its force output changes with the position of the linkage, the adjustment of the spindle, and the direction of the load it's resisting. The rated number is a peak figure measured under specific test conditions — not a guarantee of what you'll get in your setup.

Rated Capacity vs. Working Capacity: Reading the Spec Sheet Correctly

When a manufacturer lists a holding capacity — say 400 daN for a mid-range horizontal-handle clamp — that value is established on a test rig where the load is applied in the ideal direction, the clamp is in its optimal locked position, and nothing is vibrating, heating, or cycling thousands of times. Your fixture is rarely that tidy.

Rated capacity is a peak lab figure; working capacity is what remains once real-world conditions are accounted for.

Several factors reduce the force you can actually rely on:

• Load direction. Rated capacity assumes force resisted along the clamp's designed axis. Off-axis or side loads reduce effective holding force.
• Spindle and bar adjustment. A clamp set slightly short or long of its ideal position delivers less than its rated force.
• Vibration and cyclic loading. Machining, drilling, and welding introduce dynamic loads that a static rating never captures.
• Wear over the production run. Pivots, bushings, and rubber spindle caps wear, and holding force drifts down across thousands of cycles.
• Workpiece surface and rigidity. A flexible part or an uneven surface changes how force is distributed.

The practical takeaway: treat rated capacity as a ceiling you should never design up to. The force you plan around — the working capacity — should be a deliberate fraction of that rating. That fraction is set by your safety factor.

What Is a Safety Factor — and How to Apply It

A safety factor is the margin between a component's rated capacity and the load you actually place on it. It's the engineer's buffer against everything the rating doesn't account for: variation, wear, dynamic loads, and simple uncertainty.

Applying it to clamp selection is straightforward:

Required rated capacity = Estimated working load × Safety factor

Worked through in four steps:

1. Estimate the working load. Determine the maximum force trying to move, lift, or shift your workpiece — cutting forces, part weight, tool thrust, or process reaction forces.
2. Choose a safety factor appropriate to your application (see the table below).
3. Multiply the working load by the safety factor to find the minimum rated capacity you need.
4. Select a clamp whose rated holding capacity meets or exceeds that figure — then distribute the load across multiple clamps if a single unit would be over-stressed.

A simple example: if your process applies an estimated 120 daN of working load and you're using a 2.5× safety factor for light machining, you need a clamp rated for at least 300 daN (120 × 2.5). Specifying a 300 daN clamp gives you the margin to absorb vibration, wear, and off-axis loading without the part shifting.

Suggested Safety Factors by Application Type

These are practical starting ranges. Always adjust for your own process, tolerances, and risk. When in doubt, size up.

Application	Typical Safety Factor	Why
Light assembly / hand work	1.5× – 2×	Low, predictable static loads; minimal vibration.
General machining / drilling	2× – 3×	Moderate cutting forces and cyclic loading.
Welding / heavy fixturing	3× – 4×	Thermal distortion, heavier parts, higher consequences of movement.
Automated / high-cycle production	3× – 5×	Thousands of cycles amplify wear; unattended operation raises risk.

Common Clamping Force Mistakes to Avoid

• Designing to the rated number. Specifying a clamp whose rating exactly matches your working load leaves no margin for anything real.
• Ignoring load direction. A clamp rated for a downward hold-down load may offer far less resistance to a sideways push.
• Forgetting dynamic loads. Static part weight is easy to calculate; the cutting, thrust, and impact forces of the process are what actually challenge the clamp.
• Over-clamping. Too much force can deform delicate parts or overload the fixture. A safety factor works in both directions — it's about the right force, not simply the most.
• Using one clamp where several belong. Distributing load across multiple clamps improves stability and keeps each unit within a safe working range.

A heavy-duty clamp like the VH Series gives you the rated headroom to build in a proper safety margin.

Matching a Kakuta Series to Your Force Range

Kakuta has manufactured precision toggle clamps since 1959, with series spanning light assembly through heavy-duty, high-force workholding. Choosing the right family is the first step in giving yourself the safety margin above:

• HH Series — Horizontal Handle: the workhorse for general machining and assembly fixtures where the handle needs to sit clear of the work area.
• HV Series — Vertical Handle: compact footprint for tight fixtures and lower-profile hold-downs.
• FA Series — Straight-Line / Push-Pull Action: for pull-down and in-line clamping where a plunger draws the workpiece into position.
• PA Series — Pneumatic: consistent, repeatable force for automated and high-cycle production, where manual variation isn't acceptable.
• VH Series — Heavy-Duty Vertical: high-force workholding spanning roughly 300 to 2400 daN for demanding automotive and structural fixturing.

For full ratings and mounting dimensions across every model, browse our complete product range, or read the companion guide on choosing the right toggle clamp for your application.

For deeper background on the physics of clamping, the engineering reference Engineering Toolbox offers useful primers on force, friction, and mechanical advantage.

Unsure which safety factor applies to your fixture?

Send us your application details and our engineering team will recommend a clamp and force range with the right margin built in.

Contact Us for a Spec Review

The Bottom Line

Rated capacity is where clamp selection starts, not where it ends. It's a peak figure from an ideal test — a ceiling, not a target. Reliable fixture design means estimating your real working load, applying a safety factor suited to the application, and choosing a clamp whose rating gives you room to absorb the vibration, wear, and off-axis loads that every real process produces.

Get that margin right and your workholding stays consistent from the first part to the ten-thousandth. Get it wrong, and the failure shows up exactly where you can least afford it — mid-production, on the shop floor.

Talk to our engineering team about your application, or explore the full Kakuta range to find the right series for your force requirements.

What Is Clamping Force and Why it Matters in Fixture Design

Clamping force diagram showing rated vs. actual holding force on a Kakuta HV Series toggle clamp

Engineering Guides

What Is Clamping Force and Why It Matters in Fixture Design

A clamp rated at 687 daN (700 Kg) doesn't guarantee that force at your workpiece — here's what the rating actually means, and how to size it correctly.

A clamp rated at 687 daN (700 Kg) doesn't guarantee that force at your workpiece. It guarantees that output under the test conditions printed on the spec sheet — straight-line force, full over-center engagement, no offset load. Mount that same clamp at an angle, skip the safety margin, or run it through 2,000 cycles a shift, and the number on the catalog page stops describing what's actually happening at the workpiece.

This is where most fixture problems start. Not from a clamp that's “wrong,” but from a clamp whose rated capacity was read as a working guarantee instead of a starting point.

This guide breaks down what clamping force actually measures, how to read a holding capacity rating correctly, how to calculate the force your application needs, and where engineers most often get the math — or the mounting — wrong.

Defining Clamping Force

Clamping force, also called hold-down force or holding force, is the amount of force a toggle clamp's arm exerts on a workpiece once the toggle mechanism is fully engaged. Kakuta — like most international manufacturers — publishes this figure in daN (decanewtons), the standard force unit used across European and international spec sheets.

That single number is meant to summarize a clamp's ability to resist cutting, drilling, welding, or assembly forces acting on the part. But it's a starting point for fixture design, not a complete answer. A published rating describes performance under defined test geometry — not the working capacity in every fixture it gets bolted into.

→ Explore the Kakuta HH Series

How to Read a Holding Capacity Rating (Rated vs. Actual)

Every toggle clamp spec sheet lists a rated holding capacity: the maximum force the clamp produces when the toggle is fully over-center and the arm is aligned with the test geometry used to establish that figure.

Actual holding force in your fixture depends on three things:

• Force direction. Ratings are typically established for force applied perpendicular to the clamp arm. Off-axis loading reduces effective holding force.
• Arm and spindle position. Holding capacity assumes correct arm length and spindle adjustment. An improperly set spindle reduces clamping pressure even on a correctly rated clamp.
• Safety factor. Most fixture designs apply a margin below rated capacity — commonly a 2:1 to 3:1 safety factor — to account for vibration, repeated cycling, and material variation.

European manufacturers commonly label this figure as nominal holding force (daN); some publish it under their own notation conventions rather than a universal symbol. The underlying measurement is the same one shown on Kakuta's spec sheets as rated holding capacity — Kakuta publishes ratings in daN across the catalog specifically so the numbers read directly against European-format spec sheets, without conversion or notation guesswork.

Calculating Required Force for Your Application

Before specifying a clamp, work backward from the application:

1. Identify the maximum force acting against the part. Cutting force, drill thrust, weld distortion, and assembly pressure all count toward this number.
2. Add your safety factor. A 2:1 to 3:1 margin above the calculated working force is standard practice for production fixtures — not a conservative extra, but the baseline.
3. Confirm the clamp's rated capacity exceeds that total, not just matches it.
4. Check force direction against your fixture geometry. A clamp rated for straight-line holding force performs differently in an angled or offset mounting.

A clamping force calculator can do the arithmetic. The engineering judgment is in steps 1 and 4 — knowing what's actually pulling, pushing, or vibrating against the part, and whether the clamp is mounted to resist it directly.

Common Clamping Force Mistakes

A few patterns show up repeatedly in fixture reviews:

• Matching rated capacity to working load with no safety margin. This leaves no buffer for cycling fatigue or part-to-part variation.
• Ignoring force direction. A clamp that performs well in straight-line testing can underperform mounted at an angle to the load.
• Sizing for static load only. Vibration and repeated cycling — common in welding and CNC fixtures — demand more holding force than a one-time static hold.
• Treating all daN ratings as equivalent. Toggle clamp capacity varies significantly across series. Holding force should be matched to the specific fixture, not assumed from a general “heavy-duty” label.

Most of these don't show up as a catastrophic failure. They show up as a clamp that loosens after a few hundred cycles, or a part that drifts 0.1mm out of tolerance on the parts nobody double-checked.

Kakuta Series: Force Ratings by Application

Kakuta's heavy-duty VH Long Life Series spans four confirmed holding-force tiers, each suited to a different production environment:

Model	Rated Holding Force	Typical Application
VH 100 / VH 101	294 daN (300 Kg)	Entry-level heavy duty — workholding jigs and fixtures
VH 302 / VH 303	687 daN (700 Kg)	Mid-range heavy duty — automotive fixture use
VH 502 / VH 503	1,177 daN (1,200 Kg)	Industrial heavy load — high-cycle production
VH 601 / VH 602	2,354 daN (2,400 Kg)	Maximum capacity — automotive and structural jigs

Holding force comparison across the Kakuta VH Long Life Series, 294–2,354 daN (300–2,400 Kg)

For lighter-duty applications, Kakuta's HH and HV series cover standard horizontal and vertical hold-down work where full VH-range capacity isn't required.

A note for engineers cross-referencing European spec sheets: the VH 100 through VH 602 range corresponds directly to the heavy-duty vertical series used by UK manufacturers under VA-series-style notation, and to what Italian suppliers list as Serie Verticale Pesante. Kakuta's catalogue ratings are published in Kg; daN equivalents are shown in the table above (1 Kg ≈ 0.981 daN), so the comparison against European daN-format spec sheets is a straightforward read, not a conversion exercise.

→ Explore the Kakuta VH Heavy-Duty Series

Conclusion

Clamping force is a useful spec, read correctly. Rated capacity tells you what a clamp produces under defined test conditions; actual performance in your fixture depends on direction, mounting, and safety margin. Whether you're comparing daN ratings against a European spec sheet or sizing a new fixture from scratch, start with the working force your application actually generates, build in a margin, and match it against confirmed holding capacity — not a general-duty label.

For the full breakdown of clamp types and how to match one to your fixture geometry, see our guide on how to choose the right toggle clamp.

Frequently Asked Questions

What is clamping force in a toggle clamp?

Clamping force, also called hold-down force or holding force, is the amount of force a toggle clamp exerts on a workpiece once the toggle mechanism is fully engaged. It's published in daN on most international and European-format spec sheets.

Why is rated holding capacity different from actual holding force?

Rated capacity is measured under defined test conditions — straight-line force, full over-center engagement. Actual force in your fixture depends on mounting angle, spindle adjustment, and the safety margin applied during design.

How much safety margin should I build into a clamping force calculation?

Most production fixtures apply a 2:1 to 3:1 safety factor above the calculated working force, to account for vibration, repeated cycling, and material variation.

Do Kakuta's force ratings compare directly to European toggle clamp specs?

Yes. Kakuta publishes holding force in daN, the same unit used across European spec sheets, including the conventions used by UK and Italian heavy-duty vertical clamp suppliers — so ratings can be compared directly without conversion.

🔩 Looking for the Right Toggle Clamp?

Browse KAKUTA USA's full range of Release-Lock Toggle Clamps — built for precision workholding in CNC, welding, and assembly.

Shop Toggle Clamps →

How to Choose the Right Toggle Clamp for Your Application

Kakuta toggle clamp types lineup — HH horizontal handle, HV vertical handle, FA straight-line action, SL latch action, AC air clamp, FM mini, and PA pneumatic toggle clamps for industrial workholding

Choosing the wrong toggle clamp does not announce itself immediately. The fixture closes. The part seats. Production begins. Then, three weeks later, a clamp fails mid-cycle, a part shifts during welding, or an operator compensates with a workaround that becomes a safety concern.

The right toggle clamp is not simply the one that fits the mounting footprint. It is the one that matches the direction of your clamping force, the geometry of your fixture, the cycle rate of your production line, and the environment your equipment works in.

This guide covers the seven main toggle clamp types available in the Kakuta range, the critical questions to answer before you specify, and how to match both to the series designed for your application.

What Is a Toggle Clamp?

A toggle clamp is a mechanical workholding component that uses over-center geometry to lock a workpiece in position. When the handle passes through the center point of the toggle linkage, the clamp achieves a self-locking state — holding the part securely without any continuous operator force applied.

This over-center locking principle is what distinguishes toggle clamps from simple mechanical clamps. Once locked, the clamp maintains holding force through the full machining, welding, or assembly cycle, releasing only when the operator deliberately opens the handle.

Toggle clamps are used across jig and fixture applications, assembly lines, welding fixtures, CNC machining setups, and quality inspection stations wherever a workpiece must be held in a precise, repeatable position.

Kakuta has been manufacturing precision toggle clamps since 1959. The product range spans standard, heavy-duty, latch-action, pneumatic, and compact models, covering holding capacities from light assembly applications to demanding automotive and structural jig environments.

Diagram showing toggle clamp over-center geometry — pivot point, clamping force direction, and locked position for industrial jig and fixture applications.

The 7 Main Toggle Clamp Types

Understanding the fundamental difference between clamp types is the first step in the selection process. Each type is optimised for a different force direction and fixture geometry.

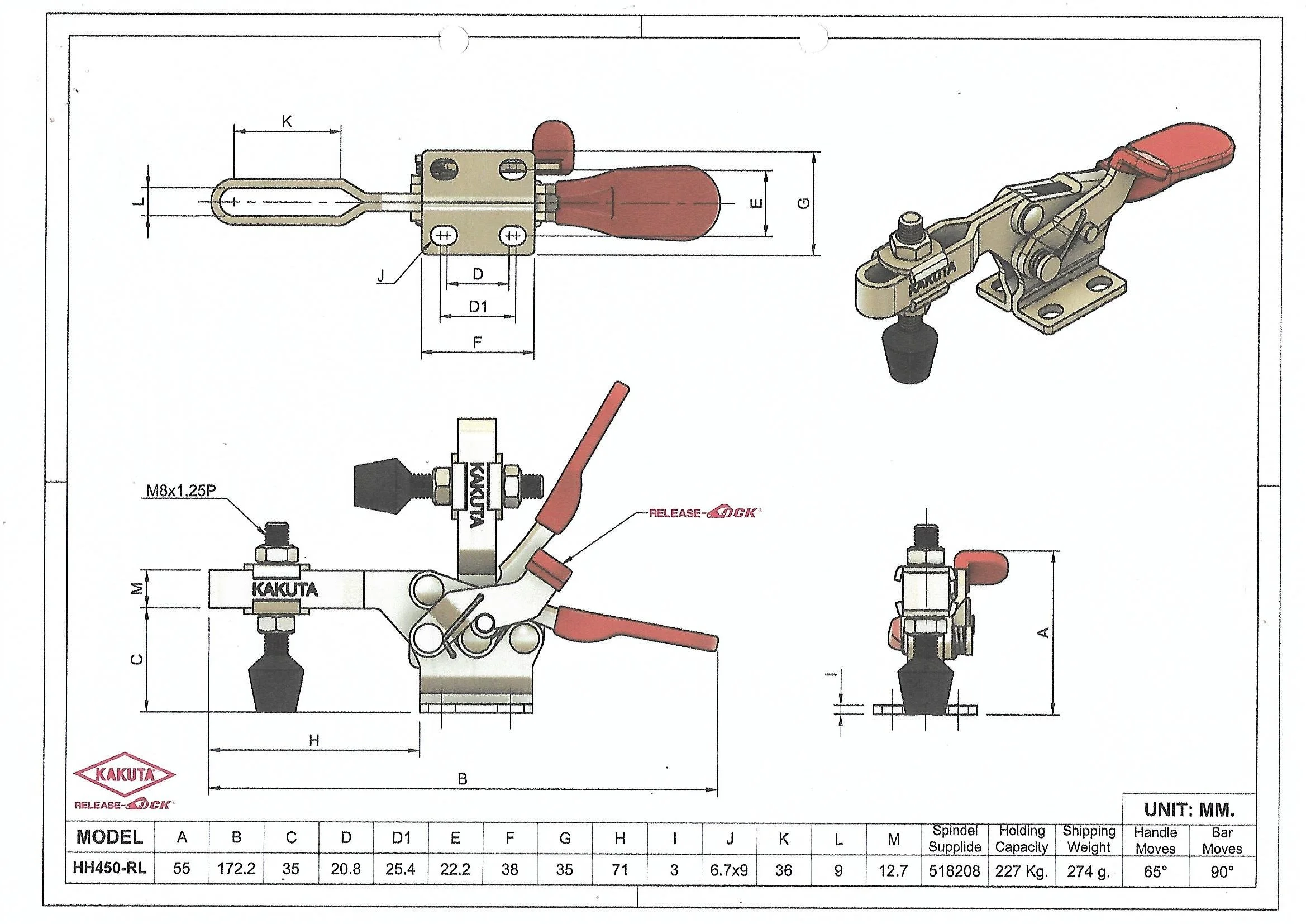

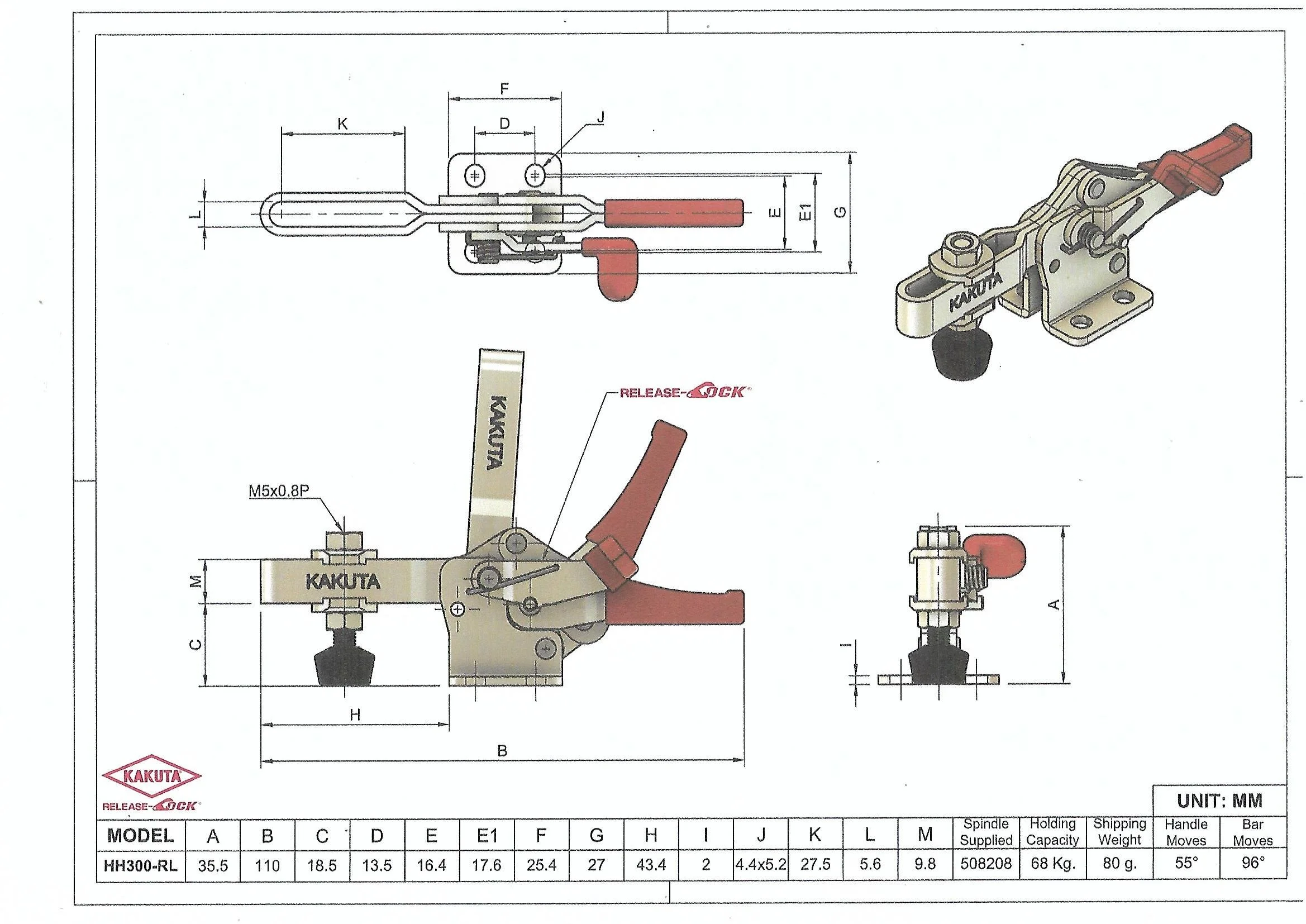

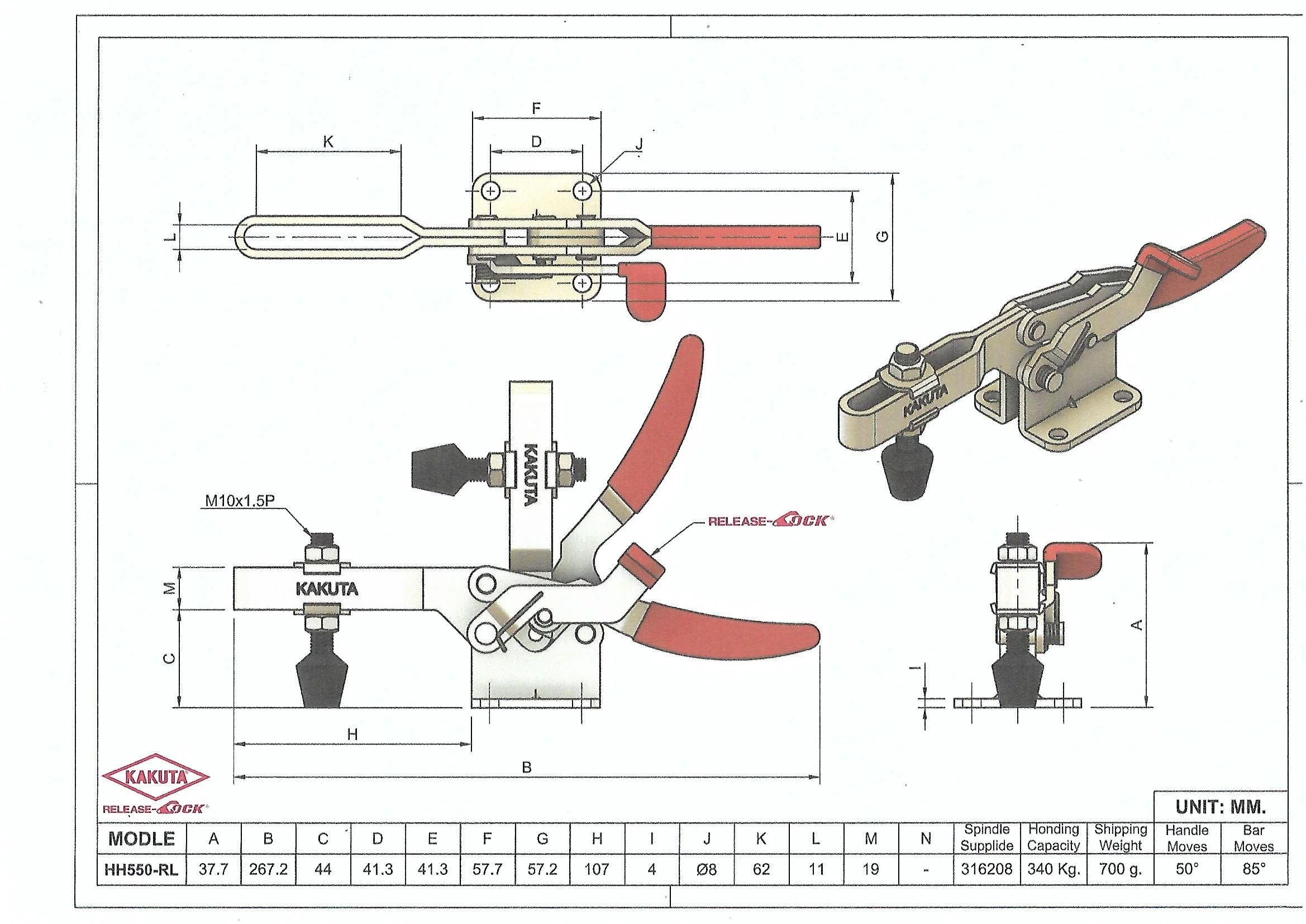

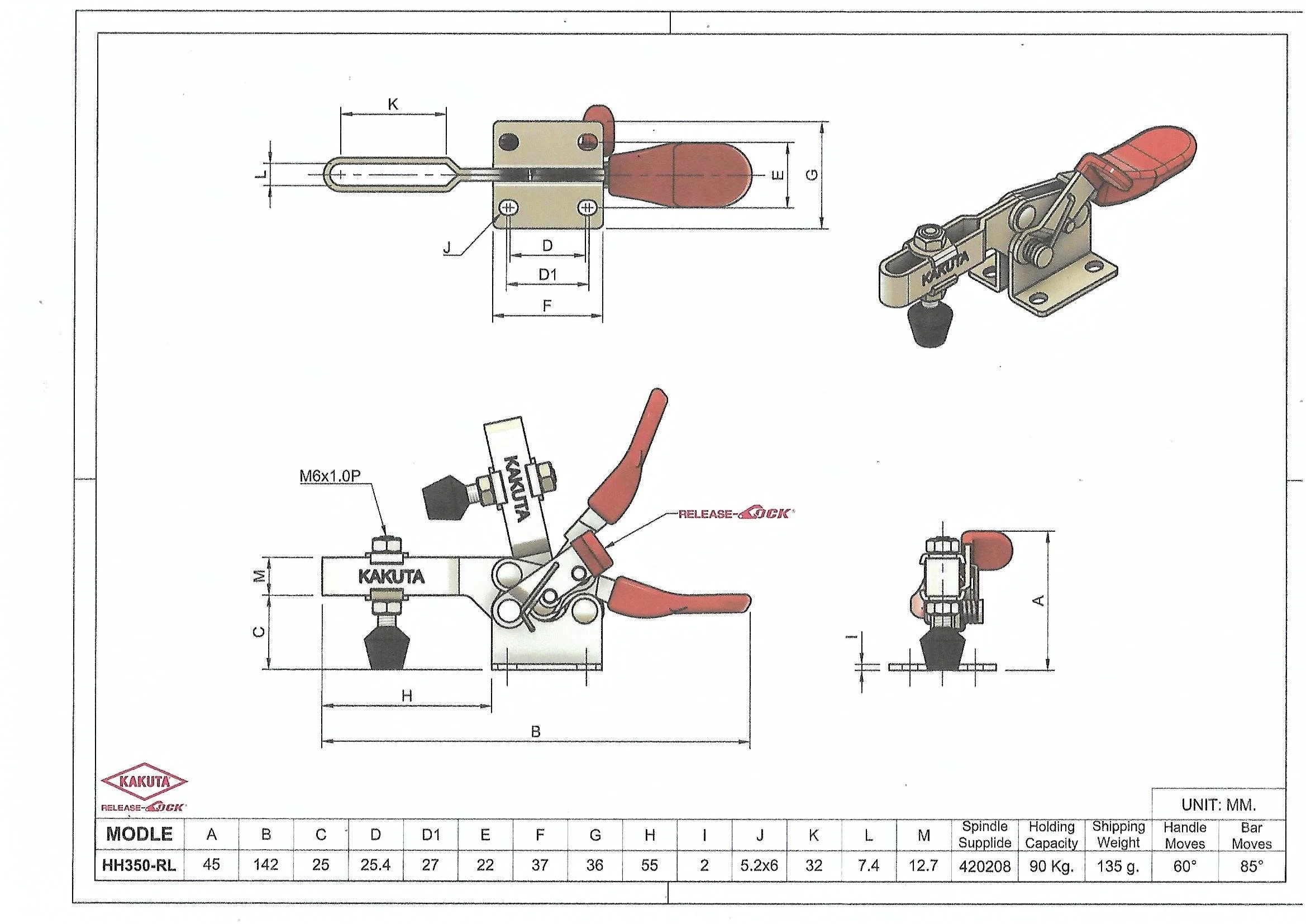

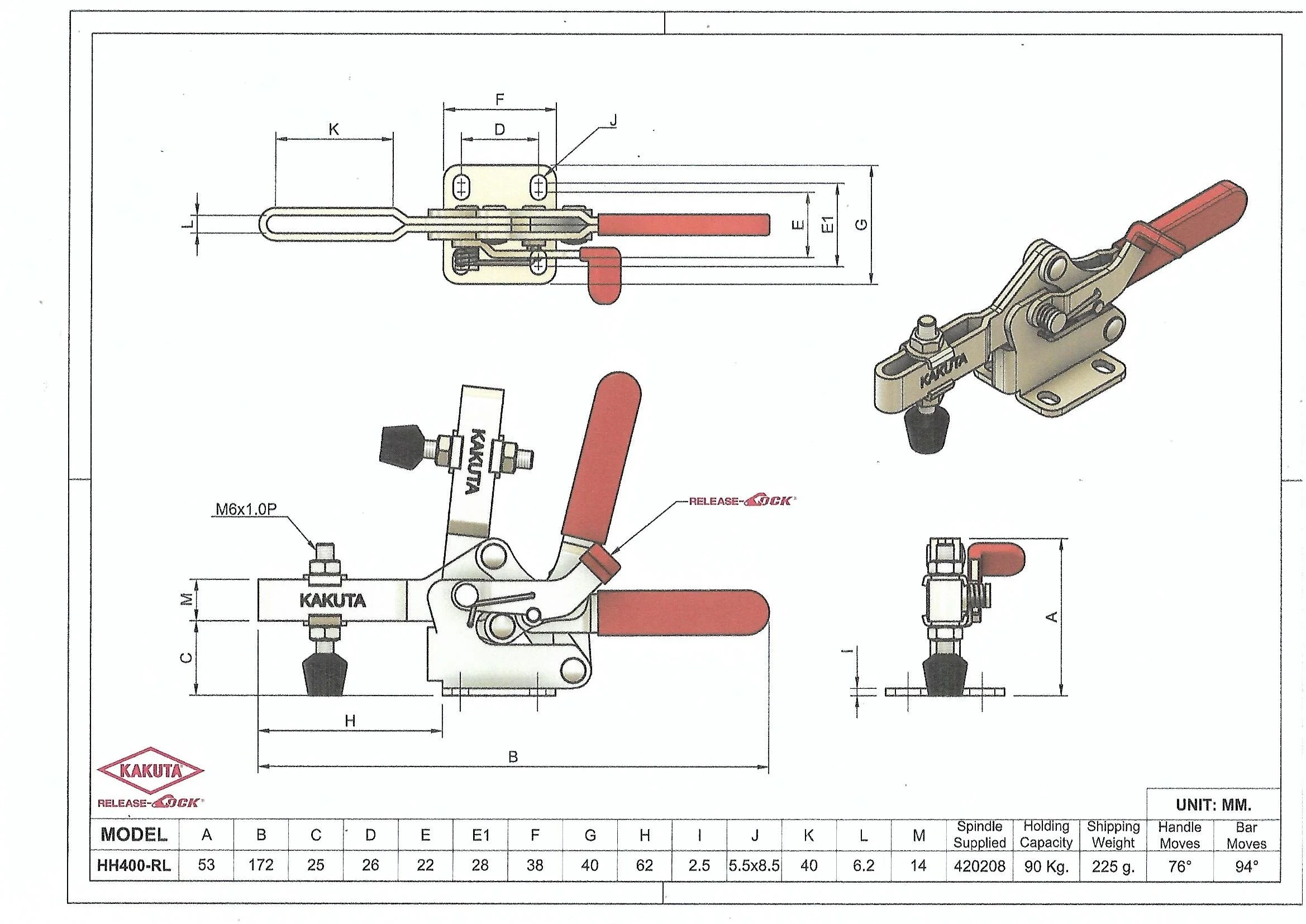

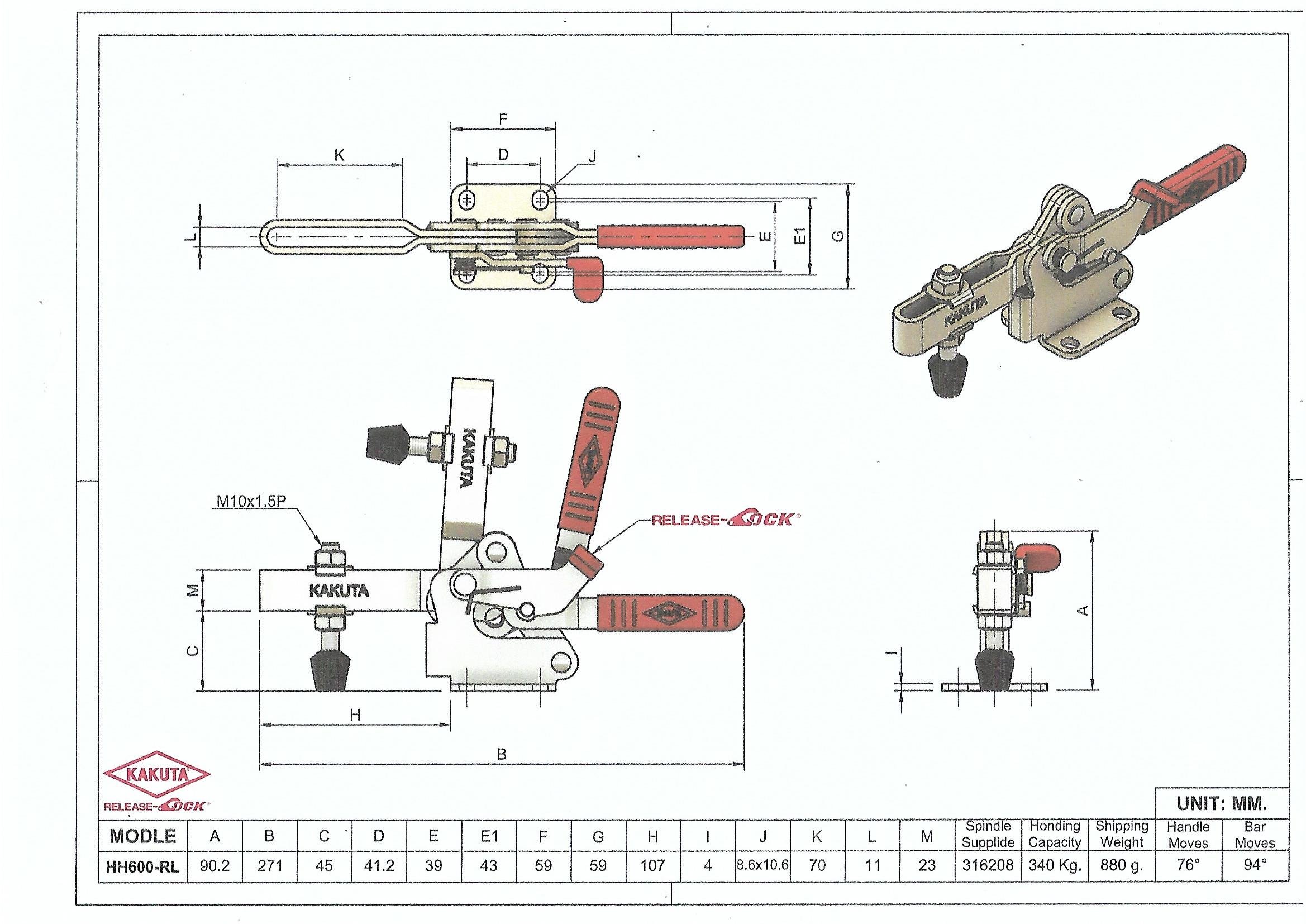

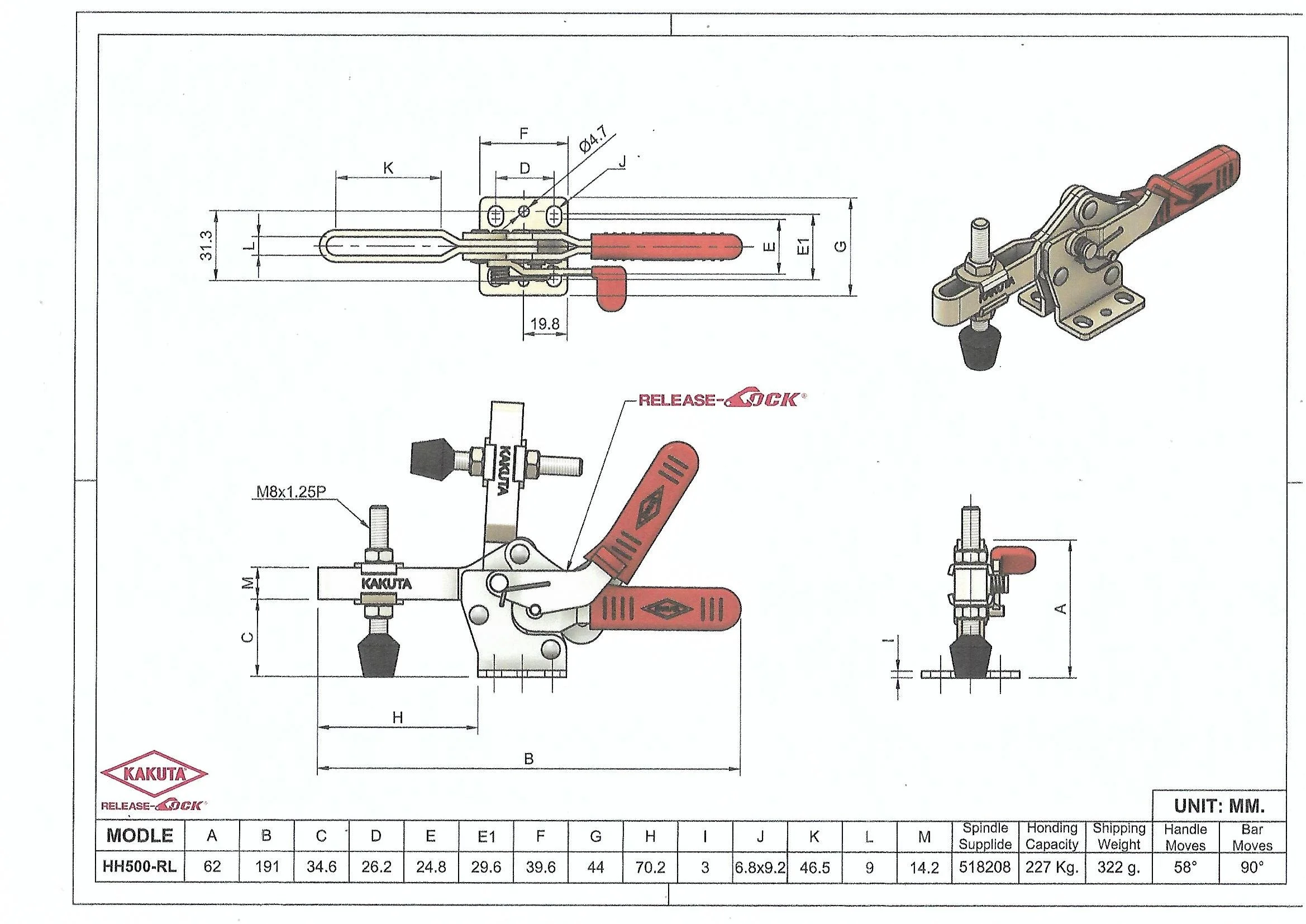

Horizontal Handle Clamps (HH Series)

The horizontal handle clamp is the most widely used toggle clamp type in general manufacturing. The handle operates in a horizontal plane, and the clamping spindle applies a vertical, downward hold-down force onto the workpiece.

HH series clamps are suited to applications where the operator has clear horizontal access to the handle, and where the primary clamping force direction is downward — holding a part onto a fixture base or machine table. They perform well in high-frequency production environments and are available in a broad range of holding capacities.

Typical applications include CNC machining fixtures, general assembly jigs, and inspection fixtures where space allows horizontal handle travel.

→ Explore the Kakuta HH Series

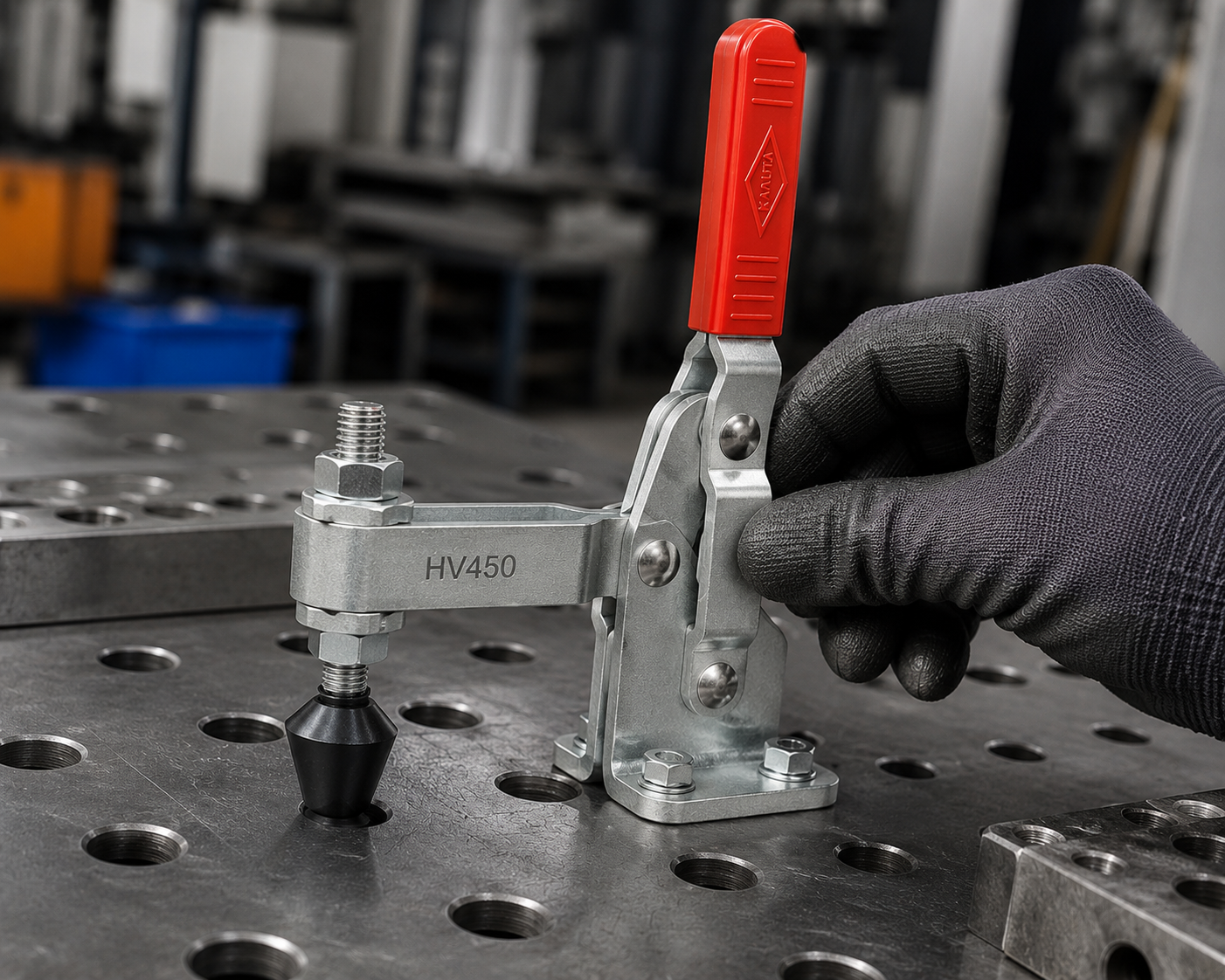

Vertical Handle Clamps (HV Series)

The vertical handle clamp operates with a handle that moves in a vertical plane. The clamping spindle delivers a downward or angled force depending on the model configuration.

HV series clamps are preferred where fixture geometry limits horizontal access — for example, in nested or multi-clamp fixtures where handles must not interfere with each other or with the workpiece approach path. They are also common in applications where the operator position makes a vertical handle stroke more ergonomically efficient.

For heavy-duty applications requiring holding forces from 300 daN up to 2,400 daN, Kakuta's VH Series (heavy-duty vertical handle clamps) provides an extended capacity range suited to automotive jig fixtures, structural holding applications, and high-cycle production lines where standard-duty clamps are insufficient.

→ Explore the Kakuta HV Series

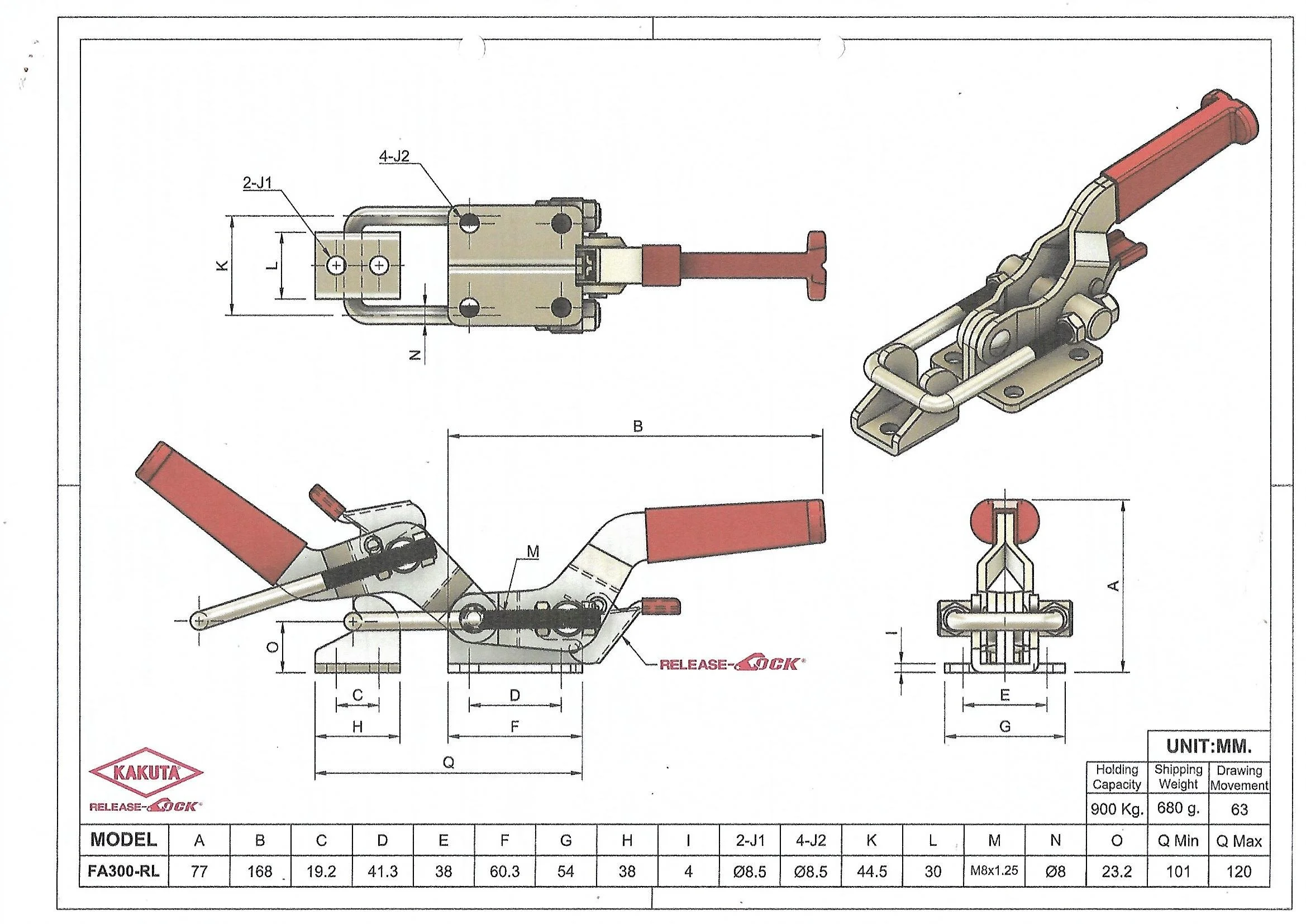

Straight-Line Action Clamps (FA Series)

The straight-line action clamp, also called a push-pull clamp, delivers force in a linear direction — directly along the axis of the spindle travel. Unlike horizontal or vertical handle clamps, the FA series applies force horizontally inward or outward rather than downward.

This makes straight-line action clamps the correct choice where the workpiece must be pushed against a locating stop, pulled into a nest, or clamped from the side rather than from above. The inline force delivery also makes FA series clamps easier to integrate into fixtures where overhead clearance is restricted.

Common applications include side-clamping in welding fixtures, inline locating jigs, and assembly stations where a part must be pushed positively to a datum before clamping.

→ Explore the Kakuta FA Series

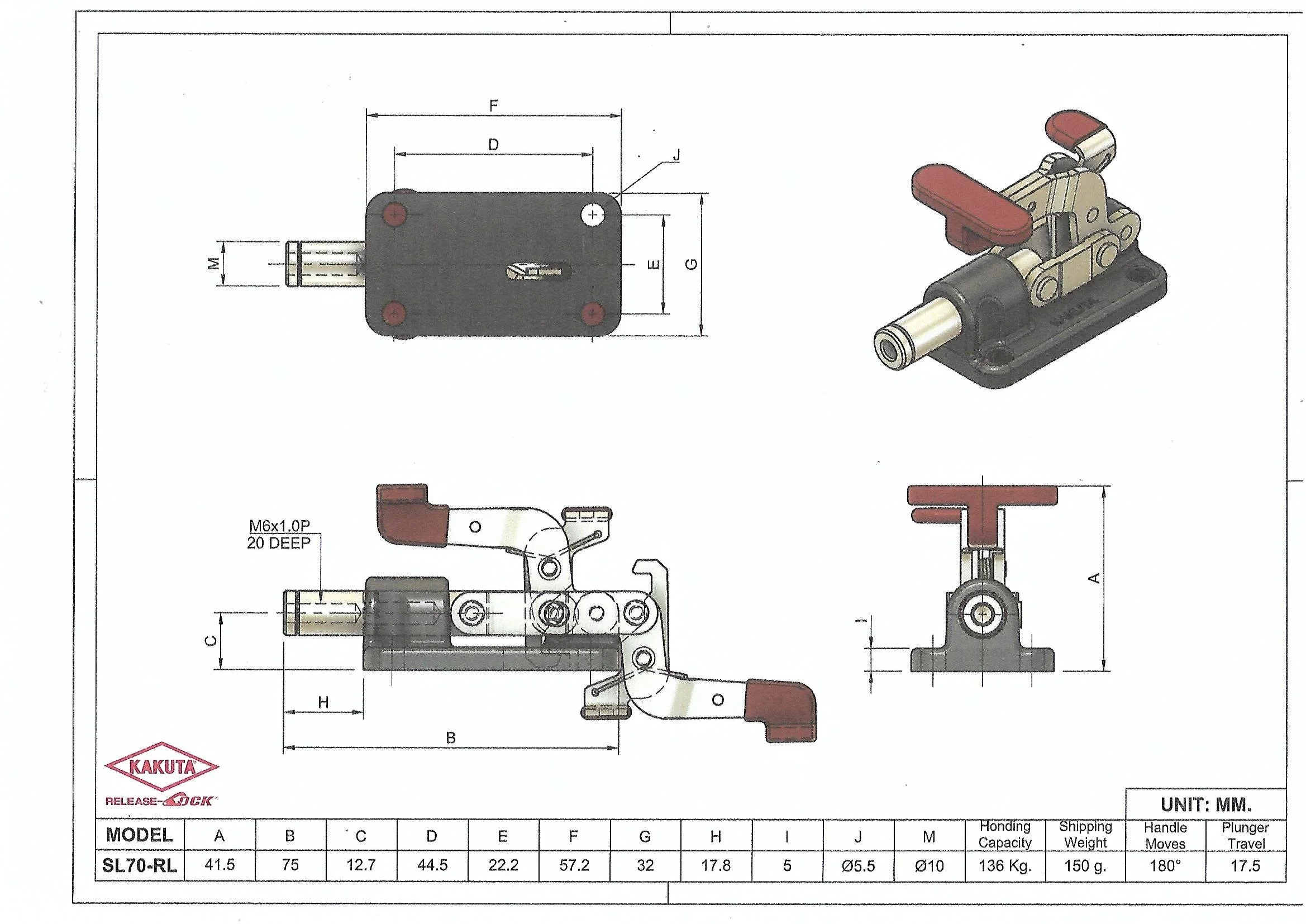

Latch Action Clamps (SL Series)

The latch action clamp — Kakuta's SL series — operates with a side-entry handle and a horizontal plunger that drives directly into the fixture to lock the workpiece. The action is a firm, decisive push-and-lock motion, making it fast to operate and easy to build into tight fixture layouts where a conventional horizontal or vertical handle would create interference.

SL series clamps are particularly well suited to applications where the clamp must engage from the side of the workpiece rather than from above, and where quick, consistent locking and release are required. The compact body profile allows SL clamps to be positioned closely together in multi-clamp fixtures without handle collision.

Typical applications include assembly jigs, inspection fixtures, sheet metal holding applications, and any production environment where operator speed and clamp accessibility matter as much as holding force.

→ Explore the Kakuta SL Series

Air Clamps (AC Series)

Kakuta's AC series air clamps replace the manual handle with a pneumatic actuator, enabling automated clamping and unclamping as part of a machine cycle or PLC-controlled sequence. The pneumatic mechanism drives the same over-center toggle geometry used in manual clamps, delivering consistent holding force on every cycle without operator involvement.

AC series clamps are specified when cycle rate demands exceed practical manual operation, when the fixture is integrated into an automated production cell, or when operator ergonomics require removing the manual clamping step from the production cycle entirely. They are readily integrated into existing pneumatic circuits and machine control systems.

Common applications include robotic welding cells, automated assembly lines, high-volume CNC production fixtures, and any environment where repeatable, hands-free clamping is a production requirement.

→ Explore the Kakuta AC Series

Mini Toggle Clamps (FM Series)

The FM series covers Kakuta's compact and miniature toggle clamp range — precision workholding components engineered for applications where space is severely constrained and standard-size clamps cannot be accommodated without fixture redesign.

FM series clamps retain the same over-center locking geometry and reliable hold-down action as full-size Kakuta clamps, scaled down to a fraction of the footprint. They are used in small-part assembly fixtures, electronics manufacturing, optical component handling, laboratory equipment, and any application where the workpiece itself is small or where fixture density requires multiple clamps in a very limited area.

Despite their compact size, FM series clamps deliver consistent, repeatable holding force appropriate for precision light-duty and medium-duty applications.

→ Explore the Kakuta FM Series

Pneumatic Toggle Clamps (PA Series)

Kakuta's PA series pneumatic toggle clamps combine the mechanical over-center locking action of a manual toggle clamp with a pneumatic cylinder that drives the clamping arm automatically. Unlike the AC air clamp — which replaces the full toggle mechanism with a pneumatic actuator — the PA series retains the familiar toggle clamp body and adds pneumatic actuation to it, making the transition from manual to automated clamping straightforward in existing fixture designs.

PA series clamps are well suited to semi-automated and fully automated production environments where consistent clamping force and cycle-accurate repeatability are required. They are commonly used in welding fixtures, assembly automation, and production lines where a manual operator step needs to be eliminated without completely redesigning the fixture layout around a different clamp body.

Integration with a pneumatic circuit is direct, and the toggle mechanism's self-locking geometry provides a mechanical backup even under pressure fluctuations.

→ Explore the Kakuta PA Series

Seven Kakuta toggle clamp types comparison — HH, HV, FA, SL, AC, FM, and PA pneumatic toggle clamps for industrial workholding and jig fixture applications

5 Questions to Ask Before You Specify a Toggle Clamp

Once you know which clamp type fits your force direction and fixture geometry, these five questions will define the correct model within that type.

1. What direction is your primary clamping force? This is the first filter. Downward vertical force points to the HH or HV series. Horizontal inline force points to the FA or SL series. If clamping is automated and integrated into a machine cycle, evaluate the AC or PA series — AC for full actuator-based clamping, PA for pneumatic automation of a toggle clamp body. For small-part or compact fixture work, evaluate the FM series against the space constraints first. Getting the force direction wrong makes every other decision irrelevant.

2. What is the required holding capacity? Catalogue holding capacity is a rated maximum — not a working load. In practice, most fixture engineers apply a safety factor of 2:1 to 3:1 against the actual clamping force required by the application. For light assembly work, the FM mini series or standard HH or SL clamps are sufficient. For heavy jig applications, automotive fixtures, or structural workholding requiring 1,000 daN and above, Kakuta's VH heavy-duty series provides verified holding capacity up to 2,400 daN.

3. What is your part's geometry and surface condition? A flat, machined surface clamps differently from a curved or coated workpiece. Spindle tip selection — flat tip, neoprene tip, or swivel spindle — should match the workpiece contact geometry. Clamp arm height and reach must accommodate the workpiece profile without interference.

4. How many cycles per shift does your fixture run? A fixture running 200 cycles per shift operates differently from one running 2,000. Higher cycle rates accelerate wear on pivot pins, spindle threads, and handle mechanisms. For high-cycle environments, select models from Kakuta's range with appropriate structural ratings, or specify the PA or AC pneumatic series to remove manual wear from the equation and ensure consistent, repeatable clamping on every cycle.

5. Does the environment require corrosion resistance or special surface treatment? Standard production environments are served by Kakuta's standard surface finish. For wet machining environments, chemical exposure, or food and beverage applications, confirm the clamp finish and material specifications match the environmental requirements. Where European industrial standards are a reference, Kakuta's VH series corresponds directly to the VA series specifications used by UK and European fixture engineers.

Kakuta precision toggle clamps

Matching the right series to your application

Use this reference to identify the correct Kakuta clamp series based on your application type, holding force requirements, and fixture geometry.

Series	Application	Key consideration
HH Series	General machining fixture, CNC setup	Downward hold-down force with horizontal handle travel. Best where the operator has clear lateral access to the handle. Most widely used toggle clamp type in general manufacturing
HV Series	Multi-clamp fixture, limited lateral space	Vertical handle travel in a compact footprint. Preferred where horizontal access is restricted by fixture geometry or operator position. Well-suited to nested fixtures and ergonomic overhead clamping
VH Heavy-Duty	Automotive jig, structural fixture	High holding force from 300 – 2,400 daN. Built for high-cycle production lines where standard-duty clamps are insufficient. Japanese precision equivalent to VA Series (UK/EU) and Serie Verticale Pesante (Italy)
FA Series	Side-clamping, inline locating fixture	Linear push-pull force along the spindle axis. The correct choice where overhead clearance is restricted or the part must be pushed to a datum. Common in welding fixtures and side-clamping assembly stations
SL Series	Fast side-entry latch, multi-clamp layout	Latch action with compact body. Fast push-and-lock operation where handles must not interfere with adjacent clamps or workpiece approach. Sheet metal holding, assembly jigs, dense multi-clamp fixtures
AC Series	Automated production cell, robotic welding	Full pneumatic actuation replaces the manual toggle mechanism for PLC-integrated, hands-free clamping on every cycle. High-volume CNC fixtures and robotic cells requiring automated operation
FM Series	Small-part fixture, compact or dense layout	Miniature footprint with full over-center locking action. For fixtures where standard-size clamps cannot be accommodated. Electronics, optical components, precision light-to-medium-duty assembly
PA Series	Semi-automated fixture, toggle body + pneumatic drive	Pneumatic actuation added to a standard toggle clamp body. Retains over-center mechanical backup under pneumatic pressure fluctuation. Welding fixtures and assembly automation transitioning from manual clamping

Kakuta has manufactured precision toggle clamps since 1959. For specification support, contact Kakuta USA.

Kakuta toggle clamp mounted on industrial jig fixture holding a metal workpiece — precision workholding in manufacturing application

A Note on Heavy-Duty Applications and European Equivalents

For engineers currently specifying heavy-duty vertical toggle clamps from European sources — including VA series clamps from UK manufacturers or the Serie Verticale Pesante from Italian suppliers — Kakuta's VH series provides directly equivalent holding capacities and a comparable product range.

The VH 100 through VH 602 series spans 300 daN to 2,400 daN nominal holding force, covering the same capacity range as the heavy-duty vertical series available from European manufacturers, with Japanese precision engineering and global distribution from the USA platform.

For engineers transitioning from another brand or cross-referencing a current specification, Kakuta's technical team can assist with direct model equivalency confirmation.

→ Contact Kakuta USA for a cross-reference

Conclusion

Selecting the right toggle clamp comes down to four variables: force direction, holding capacity, cycle rate, and environment. The clamp type — HH, HV, FA, SL, AC, FM, or PA — follows from the force direction and fixture geometry. The series and model follow from the remaining variables.

Kakuta's product range has been engineered since 1959 to cover every standard workholding application, from compact FM mini clamps for small-part fixtures to heavy industrial VH jigs requiring over 2,000 daN of holding force. The selection framework above applies regardless of the industry or scale of production.

If your application falls outside standard parameters — unusual fixture geometry, extreme cycle rates, or heavy-load structural holding — contact Kakuta USA directly. The right clamp specification is worth the conversation.

→ Explore the full Kakuta toggle clamp catalog   → Contact Kakuta USA for technical support

Kakuta has been manufacturing precision toggle clamps since 1959. Products are available through authorized distributors across North America and globally. For specification support, contact Kakuta USA.

Horizontal vs. Vertical Toggle Clamps: The Complete Comparison

In modern manufacturing, the difference between a fixture that runs reliably for ten thousand cycles and one that needs constant adjustment often comes down to a single decision made during design: which toggle clamp orientation belongs on this fixture?

Toggle clamps are deceptively simple. Two clamps may look almost identical on paper — same holding capacity, same base footprint, same handle style — yet one will perform flawlessly on a CNC fixture while the other binds, interferes with tooling, or fatigues the operator within a single shift.

The most common decision engineers face is between horizontal toggle clamps and vertical toggle clamps. They share the same toggle-action principle, but they're built around completely different fixture geometries. Choosing the wrong one introduces real costs: lost cycle time, ergonomic complaints, tool clearance issues, and in worst cases, scrapped parts when a clamp interferes with a cutting path.

This guide walks through how each clamp works mechanically, where each excels, and the application logic engineers use to choose between them. It's written for the engineers, fixture designers, and OEM procurement teams who specify these components every day.

What Is a Horizontal Toggle Clamp?

A horizontal toggle clamp (often referred to as a horizontal hold-down clamp or horizontal handle clamp) is a workholding device where the handle sits parallel to the mounting surface in the clamped position. When engaged, the holding arm rotates down to apply clamping force perpendicular to the base — pressing the workpiece firmly against the fixture surface.

How It Works

Horizontal toggle clamps operate on a four-bar linkage. As the operator pushes the handle from the open position toward horizontal, the linkage drives the holding arm downward through an over-center geometry. Once the linkage passes the over-center point, the clamp self-locks: external forces on the holding arm only tighten the lock rather than release it.

This locked-by-geometry behavior is what makes toggle clamps trusted in vibration-prone CNC and welding fixtures — the clamp does not depend on operator effort to stay closed.

Typical Industrial Uses

Horizontal toggle clamps are the workhorses of flat-surface workholding. Engineers reach for them when the fixture has open space above the workpiece and the holding arm needs to swing clear during load and unload. Common applications include:

• CNC milling and drilling fixtures where the workpiece sits on a flat sub-plate
• Welding jigs with open-top workpiece access
• Assembly line fixtures for repetitive positioning of sheet metal parts
• Inspection and gauging fixtures where flat datum contact is critical
• Composite layup tables and bonding fixtures

Benefits

• Low overall fixture height — the handle lies horizontal when clamped, keeping the profile compact above the workpiece
• Clear overhead access — when released, the handle and arm swing back to give operators full vertical access to the part
• Strong clamping perpendicular to the work surface — ideal for resisting upward cutting forces
• Excellent operator ergonomics for load/unload — the horizontal motion mirrors natural pulling and pushing wrist movement
• Wide variety of base styles — flanged, straight, and stainless steel options for nearly every mounting condition

Limitations

• Requires more horizontal space alongside the workpiece for the handle's swing radius
• Less practical when the fixture has tight side clearances or adjacent tooling
• Holding-arm geometry must clear the workpiece during the full handle stroke

Common Installation Methods

Horizontal toggle clamps typically mount with a flanged base (bolted to the fixture plate from above) or a straight base (mounted from the side or onto a riser block). For high-cycle applications and harsh environments, Kakuta's HH series is available in steel and stainless steel configurations to match the fixture's duty cycle and chemical exposure.

What Is a Vertical Toggle Clamp?

A vertical toggle clamp (vertical handle toggle clamp or vertical hold-down clamp) functions on the same toggle principle, but the handle sits vertically — pointing straight up — when the clamp is closed. The holding arm again presses the workpiece downward against the fixture surface, but the operator's clamping motion is vertical rather than horizontal.

How It Works

Mechanically, the linkage and over-center locking action are equivalent to a horizontal clamp. The geometry is rotated so that the handle's at-rest position is upright. When the operator pulls the handle forward and down, the holding arm rotates to apply clamping force. The clamp passes through its over-center point and locks in the engaged position.

The key difference is the spatial envelope. A vertical clamp needs headroom above the fixture during the open stroke but very little footprint to the side. That single distinction drives most application decisions between the two orientations.

Typical Industrial Uses

Vertical toggle clamps are the natural choice when side clearance is tight but vertical clearance is available. Engineers specify them for:

• Compact CNC fixtures with multiple clamps spaced closely on a sub-plate
• Tombstone fixtures and 4th-axis setups where lateral access is restricted
• Modular fixture grids where adjacent clamps would interfere with a horizontal swing
• Workpiece indexing fixtures where the operator approaches the part from one side only
• Tooling changeovers in production cells that need quick, repeatable engagement
• Adjustable stops and fixture sub-assemblies where the clamp must sit close to a sidewall

Benefits

• Minimal lateral footprint — the clamp's working motion stays within its own vertical column
• High clamp density — multiple vertical clamps can sit side-by-side on a fixture without interference
• Intuitive single-handed operation — pulling down to lock and pushing up to release maps cleanly to natural arm motion
• Easier to integrate into enclosed fixtures or fixtures with overhead linear rails
• Visual status is immediate — handle up = open, handle down = closed, readable from across a production cell

Limitations

• Requires vertical clearance above the fixture for the handle stroke
• Not ideal where overhead robots, sliding doors, or machine enclosures restrict headroom
• Operator must approach from in front of the clamp, not from the side

Common Installation Methods

Vertical toggle clamps typically use a flanged base, but heavy-duty applications often use a vertical mounting orientation that places the base against a sidewall, with the clamping arm extending horizontally toward the work. Kakuta's HV series spans light-duty fixtures through heavy welding setups, with both standard and safety-locking handle options.

Horizontal vs. Vertical Toggle Clamps: Key Differences

Attribute	Horizontal Toggle Clamp	Vertical Toggle Clamp
Handle position when clamped	Parallel to base (lies flat)	Vertical (points down or angled forward)
Open-stroke motion	Handle swings backward in the horizontal plane	Handle swings upward in the vertical plane
Clearance requirement	Lateral / behind-clamp space	Overhead / above-clamp space
Fixture profile when clamped	Low overall height	Slightly taller stack, narrower footprint
Best fixture geometry	Wide, flat sub-plates with open sides	Compact fixtures, tombstones, dense clamp arrays
Operator approach	Side or front access	Front access primarily
Visual status indication	Less obvious from a distance	Clear at a glance (up vs. down)
Holding-force direction	Perpendicular to base (downward)	Perpendicular to base (downward)
Repeatability	High — over-center locks consistently	High — over-center locks consistently
Typical applications	CNC milling fixtures, welding jigs, assembly tables, inspection fixtures	Tombstone fixtures, dense fixture grids, modular workholding
Ergonomic profile	Pulling/pushing wrist motion	Pull-down / push-up arm motion
Common base styles	Flanged, straight, stainless steel	Flanged, vertical mount, stainless steel
Where it underperforms	Tight lateral clearances, dense clamp layouts	Low-headroom fixtures, enclosed machines

The mechanical performance — holding force, repeatability, durability — is comparable between the two when matched in series and size. The selection question is almost always about geometry, clearance, and operator interaction, not raw performance.

When Engineers Choose Horizontal Toggle Clamps

Horizontal toggle clamps are typically the default choice when the fixture is built around a flat, accessible workpiece and the production environment has open overhead space. They're chosen for:

• Standard CNC fixture builds. When a sub-plate hosts a single part or two with room for the handle to swing back, a horizontal clamp keeps overall fixture height low and tooling paths clear.
• Welding fixtures and bonding tables. Open access to the top of the part matters more than minimizing fixture width. The horizontal handle drops out of the operator's line of sight during work.
• High-throughput assembly stations. The horizontal swing pairs well with a seated or standing operator who is loading parts laterally rather than from above.
• Inspection and quality fixtures. Low fixture profiles allow gauges, dial indicators, and CMM probes to access the part without clamp interference.
• Cost-driven projects. Horizontal toggle clamps are the most widely stocked and specified style globally, supporting straightforward procurement, drop-in replacement, and broad distributor coverage.

In short, when lateral space is available and vertical clearance is a concern, the horizontal clamp wins.

When Engineers Choose Vertical Toggle Clamps

Vertical toggle clamps are selected when fixture density, side-clearance constraints, or operator-side interaction drive the design. They're chosen for:

• Tombstone and 4th-axis fixtures. A horizontal swing would collide with adjacent parts or spindles. The vertical handle stays in its own narrow column.
• Modular and grid-style workholding systems. Multiple clamps positioned in tight arrays need handles that move within their own footprint to prevent operator interference between stations.
• Tooling changeover and indexing setups. A single-direction pull-down motion is faster and more repeatable for operators cycling through high-mix, low-volume runs.
• Heavier-duty fixture work. Many vertical models are designed with larger handles and longer leverage arms, giving operators mechanical advantage for higher holding-force engagements.
• Operator-side interaction designs. When operators only approach the fixture from one side — common on transfer lines and robotic cells with human-in-the-loop steps — the vertical handle's front-facing motion improves workflow.

When side clearance is tight, fixture density is high, or operator interaction is consistently from the front, the vertical clamp wins.

Common Selection Mistakes

Even experienced engineers slip into the same handful of mistakes when specifying toggle clamp orientation. Watching for these in the design review can save weeks of fixture rework.

1. Specifying by holding capacity alone

A 500 lb horizontal and a 500 lb vertical may both meet the load spec, but only one fits the fixture envelope. Capacity is necessary but never sufficient.

2. Ignoring operator ergonomics

A clamp that's awkward to engage will be misused or skipped entirely. If an operator must twist their wrist or reach over hot tooling to actuate the clamp, the design has failed regardless of the spec sheet. Walk the fixture's load/unload cycle before final selection.

3. Underestimating handle-swing clearance

The released-position arc of a horizontal clamp handle can extend a surprising distance behind the base. On dense fixtures or near machine walls, this single dimension causes more interference issues than any other.

4. Misjudging the over-center locking force

Both styles self-lock at the over-center point, but preload at that point varies. A clamp installed too far from the workpiece won't reach over-center under load and won't lock properly. Always verify holding-arm position is set so the over-center geometry engages firmly.

5. Poor environmental compatibility

Carbon-steel clamps in coolant-flooded CNC environments corrode at pivot pins, leading to handle play and reduced holding force. Stainless steel models (available across both Kakuta HH and HV series) are the correct call for wet, acidic, or food-contact environments.

6. Choosing orientation based on what's in stock

This is the most expensive mistake. Substituting a horizontal clamp for a vertical one (or vice versa) to avoid lead time often forces a fixture redesign or causes ergonomic issues that outlast the original delay.

How to Choose the Right Toggle Clamp Orientation

Run through this checklist during fixture design — before the bill of materials is locked.

1. Required holding force. Identify the maximum load the clamp will resist, including cutting forces, vibration, and any pry loads. Match clamp size to that load with a safety margin of at least 1.5× to 2× depending on duty cycle.
2. Fixture geometry and clearance envelope.
   • Is lateral space restricted? → Vertical
   • Is overhead space restricted? → Horizontal
   • Are both restricted? → Consider a low-profile push-pull or latch clamp instead
3. Operator approach direction. Where does the operator stand during load/unload? Single-side approach favors vertical; multi-side or seated stations often favor horizontal.
4. Frequency of engagement. High-cycle stations (loading every 15–30 seconds) reward whichever orientation matches natural arm motion at the station. Walk the cycle physically before deciding.
5. Manual vs. automated operation. If the clamp will eventually be pneumatically actuated, consider Kakuta's Release-Lock Series, which is built around the same toggle principle with positive locking and controlled release.
6. Cleanliness and coolant exposure. Specify stainless steel for coolant-flooded CNC, food-contact, or chemical exposure environments. Specify standard steel finishes for dry assembly and welding lines.
7. Repeatability requirements. Both orientations offer comparable repeatability when correctly installed. The real repeatability driver is the holding-arm position and over-center setup — verify these during commissioning, not after first part runs.
8. Maintenance accessibility. Make sure pivot points, spindles, and rubber pads can be reached for inspection and replacement without removing the clamp from the fixture. This is often easier on horizontal clamps but should be checked case by case.
9. Compatibility with future automation. If the fixture is likely to be retrofitted with robotic loading, vertical clamps' narrow footprint usually integrates more cleanly with robot end-effector clearances.

Final Thoughts

Horizontal and vertical toggle clamps are not competing products — they are two answers to two different fixture geometry questions. Both deliver the same fundamental value: precise, repeatable, self-locking workholding force at the moment of part engagement. The right choice depends on what's around the clamp, not what the clamp itself can do.

Engineers who consistently select correctly between the two share one habit: they walk the fixture's full motion cycle — load, clamp, machine, unclamp, unload — before finalizing the component list. That single discipline eliminates the majority of toggle clamp rework downstream.

When the geometry and ergonomics are matched correctly, a toggle clamp becomes one of the most reliable, low-maintenance components in the entire fixture. When they're mismatched, it becomes the first point of failure.

Explore Kakuta USA's full range of horizontal and vertical toggle clamps, including stainless steel and Release-Lock variants, to find the right orientation for your next fixture build. View all products →

Frequently Asked Questions

What's the main difference between horizontal and vertical toggle clamps?

The main difference is handle orientation when clamped and the clearance envelope required during operation. Horizontal clamps need lateral space behind the base for the handle's swing; vertical clamps need overhead space above the base. Both deliver downward holding force perpendicular to the mounting surface.

Are horizontal toggle clamps stronger than vertical toggle clamps?

No. Holding capacity depends on the clamp's series, size, and over-center geometry — not its orientation. A properly sized horizontal and vertical clamp from the same product family will deliver comparable holding force.

When should I use a vertical toggle clamp instead of a horizontal one?

Use a vertical toggle clamp when fixture density is high, lateral side clearance is limited, the operator approaches from one direction, or the fixture sits inside a tombstone, 4th-axis, or modular grid setup.

Can horizontal and vertical toggle clamps be used together on the same fixture?

Yes. Mixed-orientation fixtures are common in CNC and welding environments where some clamping points have side clearance and others don't. The key is to match each clamp to its local fixture geometry rather than standardizing the whole fixture on one type.

Do vertical toggle clamps require more maintenance than horizontal ones?

No. Maintenance requirements are essentially identical: periodic inspection of pivot pins, holding-arm alignment, spindle adjustment, and rubber pad condition. Environmental exposure (coolant, dust, weld spatter) matters far more than orientation for maintenance intervals.

---

Kakuta USA has produced precision toggle clamps since 1959, supporting engineers and manufacturers across CNC, welding, assembly, and jig applications worldwide.

Alignment vs Clamping in Fixtures: What Engineers Need to Know for Accurate Workholding

Kakuta · Precision Workholding Since 1959 Engineering Insights Issue 03 · 2026

KAKUTA USA

• Products
• Horizontal
• Vertical
• Blog
• Contact

Fixture Design Workholding 101 For Engineers

Alignment vs Clamping in Fixtures: What Engineers Need to Know for Accurate Workholding

Even perfectly aligned parts can fail without proper clamping. Here's why both functions matter — and how to engineer fixtures that hold tolerance, every cycle.

Kakuta Engineering Editorial

7 MIN READ

Vertical and horizontal toggle clamps — both required for repeatable, locked workholding

In fixture design, alignment and clamping are often discussed as if they're the same job. They aren't. Alignment positions the part. Clamping holds it there.

Confuse the two, and you'll see scrap rates rise, tolerances drift, and operators chasing problems that started at the workholding stage. This guide breaks down the difference between alignment and clamping, why each one matters, and how engineers can build fixtures that deliver consistent, repeatable accuracy across every cycle.

Alignment positions a part in the correct location. Clamping holds that part in place against cutting forces, vibration, and movement. Accurate workholding requires both — alignment defines where the part sits, and clamping ensures it stays there throughout the operation.

Why This Matters in Fixture Design Basics

Workholding is the silent variable in manufacturing accuracy. A CNC machine can hold sub-thousandth tolerances, but if the fixture allows the part to shift by even 0.05 mm under cutting load, the part is out of spec.

Understanding alignment vs clamping is the foundation of reliable workholding systems — whether you're building a drill jig, a welding fixture, or a high-volume production cell.

What Is Alignment in Fixture Design?

Alignment is the positioning function of a fixture. Its job is to place the workpiece in the exact same location, in the exact same orientation, every single time.

Alignment uses passive components, including:

• Locating pins — fix the part in X and Y axes
• Stops and rest blocks — define datum surfaces
• V-blocks and cradles — locate cylindrical or contoured parts
• Guides and bushings — align tools to predetermined paths

These elements don't apply force. They simply define where the part belongs. Think of alignment as the blueprint — it tells the part where to go, but it doesn't make the part stay.

What Is Clamping in Workholding?

Clamping is the active function of a fixture. It applies controlled force to secure the part against the locators so it cannot move during the operation.

Common clamping methods used in industrial workholding include:

HH SERIES

Horizontal Handle

Downward holding force on flat surfaces

HV SERIES

Vertical Handle

Compact top-down clamping in tight setups

SL SERIES

Straight Line Action

Push-pull axial force in linear applications

FA SERIES

Latch Type

Securing covers, lids, and split fixtures

Kakuta has manufactured these clamp types since 1959, and the principle behind them hasn't changed: a mechanical lever multiplies operator input into a consistent, repeatable holding force — and locks it.

Key Difference: Alignment vs Clamping

The cleanest way to understand the relationship:

Function 01

Alignment

• Positions the part
• Passive (no force applied)
• Defines location
• Sets accuracy
• Static reference

Function 02

Clamping

• Secures the part
• Active (applies force)
• Prevents movement
• Maintains accuracy
• Dynamic load resistance

Both are required. Alignment without clamping leaves the part free to move. Clamping without alignment secures the part — but in the wrong place.

Why Alignment Alone Fails

Engineers sometimes assume that if a part is correctly located, it will stay correctly located. In real production, that almost never holds true.

Here's what acts on an "aligned but unclamped" part during machining:

• Cutting tool pressure pushes the part away from the cutter
• Vibration from spindle harmonics walks the part out of position
• Chip loading lodges debris between the part and the locator
• Thermal expansion during long cycles shifts datum surfaces
• Operator handling between operations introduces small misplacements

Any one of these is enough to produce inconsistent results. Combined, they guarantee scrap. Alignment is necessary, but it is not sufficient on its own.

How Toggle Clamps Solve This

Toggle clamps convert alignment from a hopeful starting point into a locked, repeatable condition. They do this through a simple mechanical advantage: a linkage that travels over-center, locking the clamp closed under load.

Key benefits for fixture engineers:

• Consistent holding force — the toggle locks at a defined position every cycle
• Repeatability — the clamp returns to the same closed state without operator calibration
• Fast cycle times — single-handle actuation reduces setup between parts
• Compact footprint — toggle geometry fits where pneumatic or hydraulic clamps cannot
• No external power — purely mechanical, with no air lines or hoses to manage

RELEASE-LOCK SERIES

Locked. Trusted. Engineered for Vibration.

Within Kakuta's range, the Release-Lock Toggle Clamp Series adds a secondary lock that prevents accidental release under vibration — a feature designed specifically for fixture applications where unintended unclamping is a safety or quality risk.

Real Manufacturing Example: A CNC Milling Fixture

Consider a fixture that holds a small aluminum bracket for a 3-axis CNC operation.

Fixture Breakdown Two Functions, One System

Alignment Components

• Two diamond and round locating pins establish the X-Y position
• A back stop establishes the Y datum
• A flat support plate establishes the Z datum

Clamping Components

• One horizontal toggle clamp applies downward force on the bracket
• One push-pull clamp holds the bracket against the back stop

The locating pins and stops define where the bracket sits. The toggle clamps ensure the bracket doesn't lift, slide, or rotate when the cutter engages. Remove the clamps and the locators do nothing under load. Remove the locators and the clamps secure the part in the wrong position. Both work together — that's the principle.

The same logic applies to welding fixtures, assembly jigs, drilling templates, and inspection setups across the manufacturing floor.

Common Mistakes Engineers Make

A few patterns we see repeatedly in fixture reviews:

• Relying on alignment alone — assuming a snug-fitting locator will hold the part during machining
• Under-clamping — using a clamp with insufficient holding capacity for the cutting load
• Poor clamp placement — applying force away from the cutting zone, allowing the part to flex
• Uneven force distribution — using a single clamp where two are needed, creating a pivot point
• Mixing locator and clamp duties — using a clamp as a locator, which compromises both functions

Most fixture failures aren't catastrophic. They show up as inconsistency: one part in twenty drifts out of tolerance. That's almost always a clamping issue, not an alignment issue.

How to Choose the Right Toggle Clamp

Selecting a clamp comes down to four practical factors:

1. Holding force required — Match the clamp's rated capacity to the cutting or process load, with a safety margin. A toggle clamp specified at its maximum rating in continuous production is a clamp ready to fail.
2. Available space and orientation — Vertical clamps suit compact fixtures with overhead clearance. Horizontal clamps work where downward force is needed across a flat surface. Push-pull and latch clamps suit linear or split-fixture geometries.
3. Operation type and cycle time — High-volume cells benefit from quick-release toggle action. Lower-volume or precision setups may favor adjustable spindle clamps for fine control.
4. Frequency of use and environment — Heavy-duty production demands clamps with locking features and durable construction. Welding environments need spatter-resistant designs. CNC environments favor low-profile, vibration-resistant clamps.

For a complete walkthrough of clamp types and selection criteria, see our guides on horizontal toggle clamps and vertical toggle clamps.

Conclusion: Alignment + Clamping = Accuracy

Precision manufacturing isn't about choosing between alignment and clamping. It's about engineering both to work together.

Alignment defines the geometry. Clamping defends it. When one is weak, the entire fixture is weak — regardless of how sophisticated the rest of the process is.

Engineers who design fixtures with this principle in mind build production systems that are faster to set up, easier to operate, and consistently accurate over thousands of cycles.

Frequently Asked Questions

What is the difference between alignment and clamping in fixture design?

Alignment positions a part in its correct location using passive components like locating pins, stops, and guides. Clamping applies active force — typically through toggle clamps — to hold the part in that position against vibration, cutting loads, and movement.

Why is clamping important in workholding fixtures?

Without clamping, even a perfectly aligned part will shift under cutting forces, vibration, and chip loading. Clamping is what turns alignment from a starting condition into a stable, repeatable working condition throughout the machining cycle.

Can alignment alone ensure manufacturing accuracy?

No. Alignment defines where the part should sit, but it doesn't apply force. Without clamping, the part is free to shift during machining, welding, or assembly — leading to inconsistent results and increased scrap rates.

What type of toggle clamp is best for CNC workholding?

The right choice depends on the fixture geometry, holding force required, and available space. Horizontal toggle clamps suit flat-surface setups, vertical toggle clamps suit tight overhead spaces, and push-pull clamps suit linear applications. For vibration-prone environments, locking-action clamps such as Kakuta's Release-Lock Series are recommended.

How many clamps should a fixture have?

The general principle is that clamping force should be distributed to prevent pivoting or flexing of the part under load. Most production fixtures use two or more clamps positioned to balance the cutting forces — the exact number depends on part geometry, machining strategy, and load direction.

Explore Kakuta Workholding

Build fixtures that hold — every cycle.

Kakuta has produced precision toggle clamps since 1959, supporting engineers and manufacturers across CNC, welding, assembly, and jig applications worldwide.

View Full Product Range Request a Quote

© 2026 Kakuta USA · Precision Workholding Since 1959 Article filed under: Workholding · Fixture Design · Engineering

7 Questions to Ask Your Toggle Clamp Supplier Before Signing a Purchase Order

B2B Procurement Guide

7 Questions to Ask Your Toggle Clamp Supplier
Before Signing a Purchase Order

By Ajariya Wunseesang · Category: OEM Sourcing · Supplier Selection · 12 min read

Procurement teams and OEM buyers face significant risk when selecting an industrial clamp supplier. This guide gives you the exact questions—and what to listen for—before you commit to a vendor relationship.

↓ Download Supplier Checklist Request OEM Pricing

A vertical toggle clamp secured to a production fixture plate — the type of precision hardware OEM manufacturers depend on for consistent, repeatable clamping performance across high-cycle assembly lines.
Source: Kakuta USA Product Catalog — kakutausa.com/all-products

The Real Cost of Choosing the Wrong Toggle Clamp Supplier

For procurement managers and operations leaders sourcing toggle clamps for production fixtures, jigs, and automated assembly lines, the stakes are higher than a line item on a purchase order. The wrong supplier doesn't just deliver a subpar part—it injects risk directly into your production schedule, quality systems, and bottom line.

Consider this: A single batch of out-of-tolerance toggle clamps can halt an entire assembly line. When a fixture fails mid-production because a clamp didn't meet rated clamping force, you're not just replacing hardware—you're absorbing rework costs, expedited freight charges, customer penalty clauses, and potential damage to your brand's delivery reputation.

The Institute for Supply Management (ISM) consistently identifies supplier reliability and total cost of ownership—not unit price—as the leading drivers of procurement value in industrial manufacturing. Yet too many OEM buyers still evaluate toggle clamp suppliers on price alone, skipping the qualification questions that separate a dependable manufacturing partner from a transactional vendor who will leave you scrambling.

This guide gives procurement teams and OEM engineering buyers a structured framework: seven essential questions that will help you qualify a toggle clamp supplier before a single purchase order is signed. Use them in every supplier conversation—and download the free checklist at the bottom of this page to make your evaluation process consistent and auditable.

The Kakuta USA 7-Question Toggle Clamp Supplier Evaluation Checklist — a structured framework for procurement teams qualifying industrial clamp vendors before issuing a purchase order.
Source: Download the full Supplier Qualification Checklist PDF — Kakuta USA

The 7 Questions Every Procurement Team Must Ask

Question 1 of 7

"What quality certifications do you hold, and how current are they?"

Why It Matters

Certifications are not just badges—they represent a supplier's commitment to documented, repeatable quality systems. When sourcing for OEM clamp procurement, your own quality management obligations don't stop at your facility door. If a supplier ships non-conforming clamps that pass through your incoming inspection undetected, the downstream liability is yours.

For industries operating under ISO 9001 frameworks or automotive IATF 16949 standards, supplier certification is often a non-negotiable contractual requirement—not a preference.

What to Look For

✔ Green Flag

ISO 9001:2015 certification with a current certificate date. The supplier can immediately provide a copy and explain their internal audit cadence.

✘ Red Flag

Vague references to "following quality standards" without documented certification. Expired certificates. Inability to name their registrar or certification body.

Question 2 of 7

"What are your manufacturing tolerances, and how do you ensure consistency across production runs?"

Why It Matters

In precision clamp sourcing, tolerance consistency is what separates a reliable fixture component from a field failure waiting to happen. A toggle clamp with inconsistent actuation force or dimensional drift between production batches creates unpredictable clamping behavior—especially in high-cycle automated environments where repeatability is critical.

If your engineering team has designed a fixture around a specific clamping force or pin diameter, even minor batch-to-batch variation can require fixture recalibration, producing rework, and costly downtime.

What to Look For

✔ Green Flag

Supplier provides documented tolerancing specs and can share inspection records or CMM data from recent production runs.

✘ Red Flag

Supplier cannot define their own tolerance ranges or defers all technical questions to a catalog spec sheet without supporting process data.

Question 3 of 7

"Can you support custom or OEM-specific requirements—including modified designs and private labeling?"

Why It Matters

Standard catalog products serve standard applications. But in OEM manufacturing environments, fixture and tooling requirements are often highly specific. The ability to source a B2B industrial clamp supplier who can accommodate modified geometry, non-standard actuation ranges, special surface coatings, or custom assembly configurations directly impacts your ability to optimize production fixtures without expensive workarounds.

A supplier who can only sell off-the-shelf products will become a bottleneck the moment your engineering team needs a design adaptation.

What to Look For

✔ Green Flag

Supplier has an established OEM program with documented MOQ thresholds for custom work, an in-house engineering team, and case examples of successful custom builds.

✘ Red Flag

All customization requests are deferred to a third party, or the supplier cannot articulate their minimum order quantities or timeline for custom engineering projects.

Question 4 of 7

"What is your documented lead time reliability, and how do you handle supply disruptions?"

Why It Matters

Lead time promises are easy to make during a sales conversation. Procurement teams need evidence of delivery performance over time—not a verbal commitment. In production environments where toggle clamps are a critical path component for fixture builds or tooling changes, a two-week delivery miss can cascade into a month-long production delay and contract penalties with your own customers.

Supply chain resilience—especially for hardware sourced internationally—has become a top-tier toggle clamp vendor qualification criterion since disruptions in global logistics have fundamentally changed industrial procurement risk profiles.

What to Look For

✔ Green Flag

Supplier provides on-time delivery metrics (ideally 95%+), holds safety stock for standard SKUs, and has a documented escalation process when lead times are at risk.

✘ Red Flag

Supplier cannot provide historical on-time delivery data or gives a wide "estimated" window with no accountability mechanism.

Question 5 of 7

"Do you provide direct engineering support for fixture design and application selection?"

Why It Matters

Selecting the wrong clamp type for an application—over-specified, under-rated, or incorrect actuation style—creates problems that don't show up until a fixture is in production. Engineering support from the supplier side is a differentiator that directly reduces procurement risk, especially when your internal team is evaluating new fixture configurations or transitioning to higher-throughput automation.

The best B2B industrial clamp suppliers act as technical partners, not just order processors. This is especially critical when sourcing push-pull, horizontal, latch-action, or pneumatic toggle clamp variants where application engineering knowledge matters significantly.

What to Look For

✔ Green Flag

Dedicated application engineering support available pre-sale. Supplier can review a fixture drawing and recommend the appropriate clamp type, holding force, and configuration.

✘ Red Flag

Technical questions are routed exclusively through a generic support email with multi-day response times, or the sales team cannot answer basic application questions without escalation.

Question 6 of 7

"What in-process testing and quality control procedures are applied to each production run?"

Why It Matters

A certificate of conformance means very little without understanding the inspection process that generated it. For toggle clamps used in precision fixturing, the relevant parameters—clamping force, arm travel, cam geometry, and body dimensions—need to be verified through a defined and repeatable QC process, not spot-checked on a sample of one per thousand units.

Suppliers without structured in-process QC are playing the odds with your production quality. When a batch fails in your facility, you bear the cost of incoming inspection, rejection processing, and line delays—while the supplier absorbs little to no consequence.

What to Look For

✔ Green Flag

Documented AQL inspection plans, functional force testing on each unit or defined sample size, and availability of inspection reports per order upon request.

✘ Red Flag

QC is described as "visual inspection" only. Supplier cannot provide an example inspection report or explain what parameters are tested at what frequency.

Question 7 of 7

"What is the total cost of ownership—including quality failures, rework risk, and support costs—not just unit price?"

Why It Matters

The lowest unit price on a toggle clamp is almost never the lowest total cost. When sourcing industrial clamps at production scale, procurement teams must account for the full lifecycle cost: incoming inspection resources, warranty claim processing, line stoppage events caused by product failures, re-engineering costs from dimensional inconsistencies, and the opportunity cost of time spent managing supplier quality issues.

A supplier offering clamps at 15% below market pricing may cost 40–80% more in total when failure rates, support overhead, and production disruptions are fully accounted for. ISM's total cost of ownership frameworks explicitly address this calculation as a standard procurement discipline in industrial hardware sourcing.

What to Look For

✔ Green Flag

Supplier can articulate value beyond unit cost—warranty coverage, documented failure rates, free engineering support, and stocked inventory that reduces your carrying costs.

✘ Red Flag

Supplier response to TCO questions is to simply restate unit pricing or discount structure. No data on product reliability, warranty, or failure rates is available.

↓ Free: Supplier Qualification Checklist (PDF) [DOWNLOAD: Supplier Checklist PDF] — All 7 questions formatted for use in supplier meetings and RFQ processes

Download Free Checklist

How Kakuta USA Answers Each Question

Kakuta USA is a U.S.-based precision toggle clamp supplier serving OEM manufacturers, production fixture builders, and industrial automation integrators. Here is how we respond to the seven qualification questions every serious procurement team should be asking.

Q1 — Certifications

Kakuta USA's manufacturing partners operate under ISO 9001:2015 certified quality management systems, with current certificates available upon request. Our domestic quality verification process adds an additional layer of incoming inspection before products are released to customers. View our quality assurance process →

Q2 — Tolerances & Consistency

Our toggle clamps are manufactured to documented dimensional tolerances with batch-level inspection records maintained throughout the production run. Consistency across orders is not assumed—it is verified. Customers with critical fixture applications can request inspection data for their SKUs.

Q3 — Custom & OEM Support

We offer a structured OEM program for customers requiring modified clamp configurations, custom clamping force ratings, special surface treatments, or private-label packaging. Our engineering team reviews OEM requests directly—there is no intermediary. Learn more about our OEM capabilities →

Q4 — Lead Time Reliability

Standard catalog items are maintained in U.S.-based inventory to support fast-turn procurement needs. Stocked SKUs ship within 1–3 business days. For OEM or custom orders, lead time commitments are provided in writing at the time of quotation, with proactive communication if any upstream issues arise.

Q5 — Engineering Support

Kakuta USA provides direct application engineering support at no charge for customers evaluating clamp selection for new fixture designs. Our team can review application requirements—cycle rate, holding force, actuation style, environmental conditions—and recommend the appropriate product configuration before you commit to a purchase. Talk to our engineering team →

Q6 — Quality Control

Products sourced by Kakuta USA go through defined in-process QC protocols including dimensional checks and functional force verification. We maintain full traceability on production batches and can provide certificates of conformance for orders requiring documented quality records. See our full QC process →

Q7 — Total Cost of Ownership

Our value proposition is built on predictable quality, responsive support, and reliable availability—factors that reduce the hidden costs of supplier management. We are transparent about product specifications, warranty coverage, and return policies so procurement teams can make a fully informed total-cost evaluation against any competing option. Explore our full product catalog →

Kakuta USA vs. Generic Toggle Clamp Suppliers

Not all toggle clamp suppliers operate at the same level. This table outlines the key differentiators procurement teams should use when evaluating a precision industrial clamp supplier.

[TABLE: Supplier Comparison]

Evaluation Criterion	Kakuta USA	Generic / Low-Cost Supplier
Quality Certification	✔ ISO 9001:2015 — current, documented, certificate available on request	✘ Often uncertified or certification status unclear / unverifiable
Tolerance Consistency	✔ Documented tolerances with batch-level inspection records	✘ Catalog spec only; no process data; batch variation common
OEM & Custom Support	✔ Structured OEM program with direct engineering review	✘ Catalog-only; customization routed through distributors with long timelines
Lead Time Reliability	✔ U.S. inventory stocked; 1–3 day ship on standard SKUs; written lead time commitments on custom orders	✘ Long international lead times; no stocked inventory; delivery windows wide and unreliable
Engineering Support	✔ Direct access to application engineering — pre-sale and post-sale	✘ No dedicated technical support; generic customer service only
In-Process QC	✔ Functional force verification + dimensional inspection; CoC available	✘ Visual inspection only; no documentation; no traceability
Total Cost of Ownership	✔ Higher unit value; lower failure rates; reduced rework and supplier management overhead	✘ Low unit price masks high downstream costs from quality failures and supply disruptions
Transparency & Accountability	✔ Documented warranty, clear return process, proactive communication on any supply issues	✘ Limited warranty; dispute resolution slow; accountability gaps when issues arise

Ready to Qualify Kakuta USA as Your Toggle Clamp Supplier?

Download the free Supplier Qualification Checklist or contact our team for OEM pricing and application engineering support. No commitment required.

href="https://kakutausa.com/contact-us" class="btn-primary">↓ Download Supplier Checklist PDF#x2193; Download Supplier Checklist PDF Contact Us for OEM Pricing

Frequently Asked Questions — Toggle Clamp Procurement

What is the most common mistake procurement teams make when sourcing toggle clamps? +

The most frequent mistake is evaluating suppliers on unit price alone without accounting for total cost of ownership. Low-cost toggle clamps that arrive with inconsistent clamping force, poor dimensional repeatability, or high field failure rates cost significantly more in aggregate—through rework, line stoppages, and quality escape processing—than a properly qualified supplier with a slightly higher unit price. Procurement teams should use a structured supplier evaluation framework, such as the one outlined in this article, before issuing any purchase order.

Is ISO 9001 certification required for toggle clamp vendors supplying OEM manufacturers? +

ISO 9001 certification is not universally mandated by law, but it is increasingly required contractually by OEM manufacturers and their tier-1 suppliers—particularly in automotive, aerospace, and medical device manufacturing sectors. Even in industries where it is not contractually required, ISO 9001 certification is a reliable proxy for a supplier's commitment to documented quality processes, internal auditing, and continuous improvement. Procurement teams sourcing precision industrial hardware should treat certification as a baseline qualification criterion, not an optional bonus.

How do I evaluate a toggle clamp supplier's lead time reliability before placing a large order? +

Request documented on-time delivery performance data—specifically the percentage of orders shipped within the quoted lead time window over the past 12 months. Reputable suppliers track this metric and should be able to share it readily. Additionally, ask whether they maintain safety stock on standard SKUs, whether lead time commitments are provided in writing at the time of quotation, and what their escalation process is when upstream supply issues threaten a committed delivery date. A supplier who cannot answer these questions with specifics represents a delivery reliability risk.

Can Kakuta USA support low-volume custom toggle clamp orders for prototype fixture builds? +

Yes. Kakuta USA works with engineering teams during the prototype and pre-production phases to support custom clamp configurations, modified specifications, and application-specific designs. Minimum order quantities for custom work vary based on the degree of modification required—contact our engineering team directly to discuss your specific prototype requirements and receive a project-specific quotation. Early supplier engagement during the fixture design phase frequently reduces total project costs by avoiding late-stage redesign.

What documentation can Kakuta USA provide for supplier qualification audits? +

Kakuta USA can provide ISO 9001 certificates of compliance, certificates of conformance for production batches, dimensional inspection reports for qualifying orders, and product specification documentation referenced against published tolerances. For customers conducting formal supplier qualification audits under their own quality management systems, our team is available to support audit requests and complete supplier questionnaires. Contact us to initiate a formal supplier qualification review.

Make Your Next Toggle Clamp Sourcing Decision a Strategic One

The seven questions outlined in this guide are not meant to make supplier selection harder—they are meant to make it more defensible, more reliable, and more aligned with your production quality objectives. Procurement teams that apply a consistent toggle clamp supplier evaluation framework reduce supplier-related production disruptions, improve incoming quality performance, and build the kind of vendor relationships that scale with their manufacturing operations.

Kakuta USA was founded to serve exactly this type of procurement relationship: OEM manufacturers and production fixture builders who need a precision clamp supplier they can depend on—not just for the first order, but across the lifecycle of their programs. Explore our full product catalog, review our quality control process, or contact our team directly to begin your supplier evaluation.

Start Your Supplier Evaluation Today Download the free PDF checklist — 7 questions, evaluation criteria, and red flag indicators in one printable document

Get the Free Checklist

Tags: OEM Sourcing Procurement Supplier Qualification Toggle Clamp Vendor Industrial Hardware B2B

© 2026 Kakuta USA. All rights reserved.  |  About Us  |  Product Catalog  |  Quality Control  |  Contact / RFQ  |  [email protected]

Quicklinks

Products

Cross Reference

Privacy Policy

Refunds & Returns Policy

Contact Us
