How to Install a Toggle Clamp: Mounting, Bolting & Setup

A toggle clamp only holds as well as it's mounted. Get the base flat, the bolts tight, and the spindle set correctly, and the clamp will lock the same way every cycle. Here's the step-by-step for installing one right the first time.

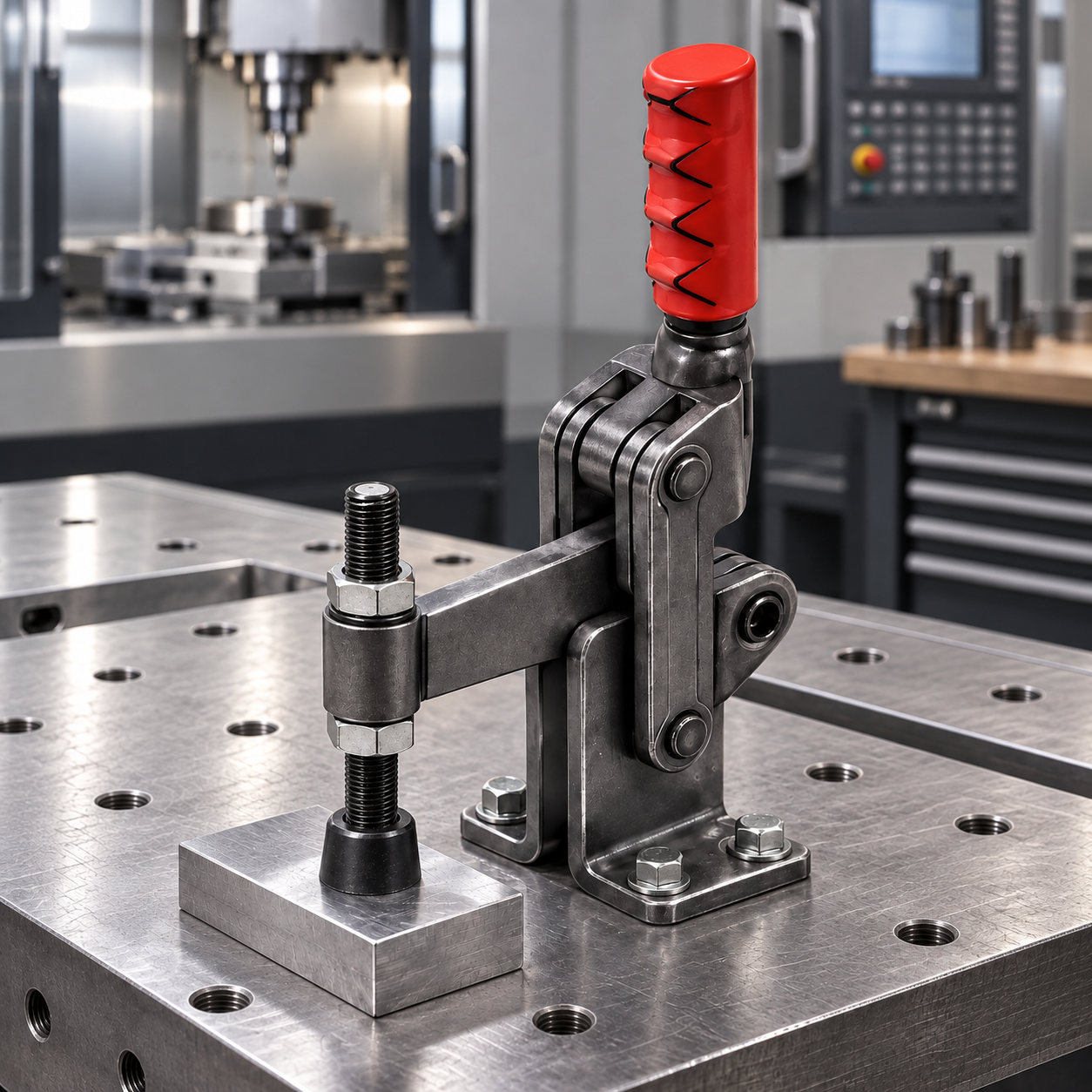

A correctly installed hold-down clamp: base flat on a rigid plate, all mounting holes bolted, spindle centered over the part.

Installing a toggle clamp is straightforward, but the details decide whether it holds securely for thousands of cycles or works loose and lets parts shift. The clamp does its job through a self-locking over-center linkage →, and every bit of that holding force is transferred through the base into whatever you mount it on. That makes the mounting surface and the fasteners just as important as the clamp itself.

This guide covers a standard manual hold-down clamp from unboxing to a verified, repeatable hold, plus the small differences to watch for with horizontal, push-pull, and latch styles.

Before You Start

Have these ready before you drill a single hole:

• The right clamp for the job. Confirm the type and holding capacity match your fixture — our guide to the types of toggle clamps → and choosing clamping force → cover selection.
• A flat, rigid mounting surface. A machined steel or aluminum fixture plate is ideal. The base must sit flat with no rock.
• Mounting hardware. Bolts or socket-head cap screws sized to the clamp's mounting holes, with washers and a way to lock them (thread locker, lock washers, or nyloc nuts).
• The clamp's datasheet. It gives the mounting-hole pattern, base dimensions, spindle type, and rated holding capacity. The spec-sheet reading guide → shows where to find each one.

Step 1 — Position the Clamp

Place the workpiece in the fixture first, then set the clamp so the hold-down spindle or arm contacts the part squarely, close to where you need it held. Aim for the spindle to press over a supported point — directly above a locating pad or solid backing — not over an unsupported overhang that can flex or dent.

Leave room for the handle to travel through its full stroke. A vertical clamp needs headroom above; a horizontal clamp needs clearance to the side. With the clamp positioned, mark the mounting holes through the base onto the plate.

Step 2 — Prepare a Solid Base

Drill and, where specified, tap the marked holes. The whole clamping load reacts through this surface, so it needs to be flat and stiff. A base that sits on an uneven or flimsy surface will rock, lose preload, and let the part move — the most common cause of an unreliable fixture.

Flatness first. If the base can rock even slightly before it's bolted, stop and fix the surface. Shimming a clamp to "take up the gap" almost never holds — the clamp will settle under load and go loose.

Step 3 — Bolt It Down

Fasten the clamp using every mounting hole in the base, not just two of four. Toggle clamps are designed to spread their reaction load across the full hole pattern; skipping holes concentrates stress and invites loosening.

• Use the correct bolt grade and diameter for the holes — don't step down to whatever's in the drawer.
• Add washers to spread the load and apply thread locker or use locking fasteners; a clamp that cycles thousands of times will vibrate plain bolts loose.
• Tighten evenly and snug the base flush to the plate with no gap underneath.

Step 4 — Fit and Align the Spindle

Most hold-down clamps use an adjustable spindle — a threaded screw carrying a rubber tip, a hex-head contact bolt, or a swivel foot — secured by a lock nut. Thread the spindle into the arm and set it so its tip meets the workpiece flat and square. A swivel or soft tip helps it seat on slightly irregular surfaces without point-loading the part.

Don't lock the spindle height yet; you'll set it while dialing in the force in the next step.

Step 5 — Set the Clamping Force

This is where installations go wrong. On a toggle clamp you don't set force by cranking the handle — the handle simply drives the linkage over-center and locks. You set force by adjusting spindle height: lower the spindle and there's more interference (more force) as the clamp closes; raise it and there's less.

Adjust so the handle closes with firm but reasonable effort and snaps positively past over-center into its locked position. Then check the result:

• Too loose: the handle closes with almost no resistance and the part can still be nudged — lower the spindle slightly.
• Too tight: you can't push the handle past center, or it takes a wrench-like force — raise the spindle. Forcing it over-center over-stresses the linkage.
• Just right: a firm, deliberate hand motion locks it, and the workpiece is held solid.

Lock the spindle nut once it's dialed in. Never adjust past the clamp's rated holding capacity to get "extra grip" — that over-stresses the mechanism instead of holding harder. If you're unsure of the target number, the clamping-force guide → walks through sizing it to the job.

Step 6 — Test and Verify

Cycle the clamp several times, opening and closing on the actual part. Confirm that it locks over-center on its own and holds, that the workpiece doesn't shift or lift, and that the base stays tight with no movement at the bolts. Load the part the way the process will — a bump, a cut, a weld pull — and make sure the hold survives it. Re-check the mounting bolts after the first run; a fresh install can seat and need one more snug-up.

Installation Quick Checklist

Step	What to do	Get it wrong and…
Position	Spindle over a supported point; handle has clearance to travel	Part flexes or the handle jams mid-stroke
Base	Flat, rigid surface; no rock before bolting	Clamp settles under load and goes loose
Bolts	All holes, correct grade, locked fasteners	Vibration works the clamp loose over cycles
Spindle	Seated square on the part, height adjustable	Point-loads or dents the workpiece
Force	Set by spindle height; firm over-center lock	Too loose to hold, or too tight to close safely
Verify	Cycle, load-test, re-check bolts	Fails on the line instead of at the bench

Mounting Notes by Clamp Type

The steps above apply to any toggle clamp; each type adds one thing to watch:

• Vertical hold-down: the default. Confirm headroom for the upright handle before you commit the hole pattern. Browse the vertical hold-down range →.
• Horizontal hold-down: the flat handle sweeps sideways as it opens — leave side clearance rather than headroom. See the horizontal hold-down range →.
• Push-pull (straight-line): mount so the base resists the in-line push and pull load, and leave room for the full plunger stroke. Explore the straight-line / push-pull range →.
• Latch (pull-action): alignment between the clamp and its catch is everything — mount both halves so the hook pulls square and seats fully closed.

Conclusion

Installing a toggle clamp comes down to six things done in order: position the spindle over a supported point, mount to a flat and rigid base, bolt through every hole with locked fasteners, seat the spindle square on the part, set the force by spindle height so the handle locks firmly over-center, then cycle and load-test before it goes to work. Do those and the clamp will hold the same way, cycle after cycle. To keep it that way once it's running, follow up with our toggle clamp maintenance guide →.

Frequently Asked Questions

How do you install a toggle clamp?

Position the clamp so its hold-down spindle presses on a supported point of the workpiece, mark and drill the mounting holes on a flat rigid surface, bolt the base down through every mounting hole with locked fasteners, thread in and align the spindle square on the part, set the holding force by adjusting spindle height until the handle locks firmly over-center, then cycle and load-test the clamp before use.

What surface should a toggle clamp be mounted on?

A flat, rigid surface such as a machined steel or aluminum fixture plate. The entire clamping load reacts through the base, so it must sit flat with no rock and enough stiffness that it won't flex under load. Mounting to an uneven or flimsy surface is the most common reason a clamp works loose and lets the part move.

How do you adjust the clamping force on a toggle clamp?

You set force by changing the spindle height, not by how hard you push the handle. Lowering the spindle increases interference and force as the clamp closes; raising it reduces force. Adjust until the handle closes with firm but reasonable effort and snaps positively past over-center, then lock the spindle nut. Never adjust past the clamp's rated holding capacity to get extra grip.

Why does my toggle clamp keep coming loose?

Almost always the base or the fasteners. Check that the base sits flat with no rock, that all mounting holes are used, and that the bolts are the correct grade with thread locker or locking hardware — plain bolts vibrate loose over thousands of cycles. Also re-check the bolts after the first production run, since a fresh install can seat and need one more snug-up.
